CP7225CVE 6"(150 mm) PNEUMATIC ORBITAL SANDER

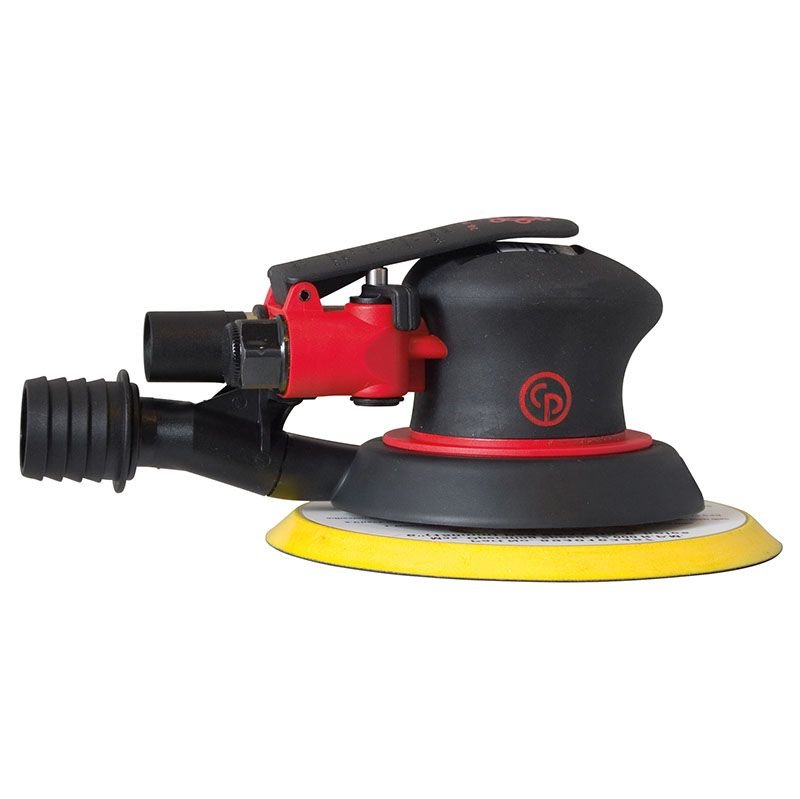

CP7225CVE 6"(150 mm) PNEUMATIC ORBITAL SANDER - Image 2
,

CP7225CVE 6″(150 mm) PNEUMATIC ORBITAL SANDER



Designed for body shops applications like final sanding, finishing, and pre-polishing processe, this 3″ (75mm) / 6″ (150mm) pneumatic orbital sander (3/32″ – 2.5mm orbit) series offers efficiency with its power of 0.3 hp (210 W) and great comfort with its palm shape in soft grip. This model belongs to the CP7225 series which is composed of 8 models: 4x Non Vacuum (NV) model (Hook & Loop and PSA pad), 1x Self Vacuum (SV) model (Hook & Loop pad) and 3x Central Vacuum (CV) model (Hook & Loop and PSA pad*). *PSA pad not available for all references.Country of origin is TW. Customs tariff is 84671110

Categories: , Brand:

Technical Specifications

Noise & vibrations
Sound Power :- 92 dB(A)
Sound Pressure :- 81 dB(A)
Uncertainty vibration-K :- 2.1 m/s²
Vibration :- 3.7 m/s²
Speed
Free Speed :- 12000 rpm
Air consumption at free speed :- 8 l/s
Overspeed shut-off :- No
Power
Max power :- 210 W
Air information
Air consumption at load :- 7.6 l/s
Air inlet thread size (in) :- 1/4
Air inlet thread type :- NPT
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Size & Weight
Height (H) :- 105 mm
Length (L) :- 221 mm
Width (W) :- 150 mm
Weight :- 0.83 kg
Design & Functions
Abrasive Pad Attachment :- Hook&Loop
Autobalancer :- No
Circular Abrasive Pad Size (in) :- 6
Circular Abrasive Pad Size (mm) :- 150
Exhaust ;- Rear
Main Material type :- Aluminium, Composite over-sleeve
Orbit Size (in) :- 3/32
Orbit Size (mm) :- 2.5
Orbit type :- Random
Output Spindle Thread :- 5/16-24 UNF
Pad holes number :- 6
Pad type :- Foam
Rotative inlet :- No
Starting system :- Lever
Vacuum :- Central vacuum

Benefits

  • Operator comfort with ergonomic palm shape in soft grip for perfect control
  • 2 sponges (yellow = Hard / white = soft) or 1 polishing foam
  • Powerful motor 0.29 hp (210 W) for vertical and horizontal applications
  • 3″(75 mm) / 6″(150 mm) random orbital with palm sander with 3/32″(2.5mm) orbit for final sanding, finishing & pre-polishing
