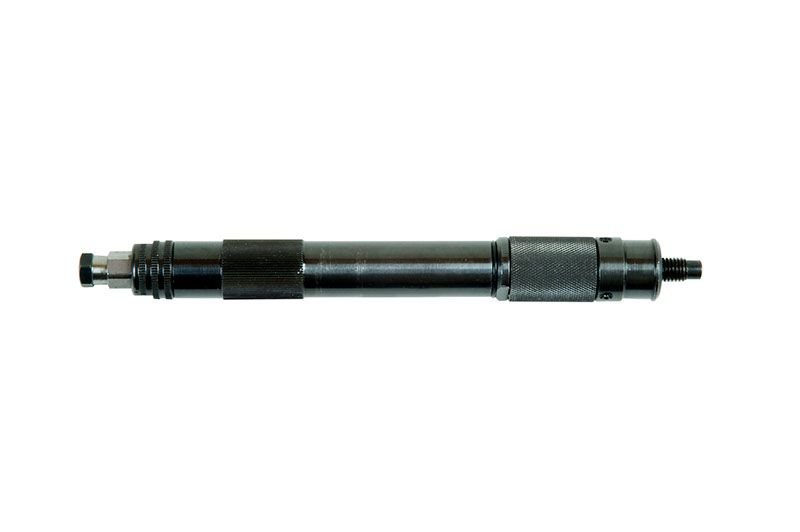

CP3000-600CR 3mm 1/8"(3 mm) PNEUMATIC DIE GRINDER

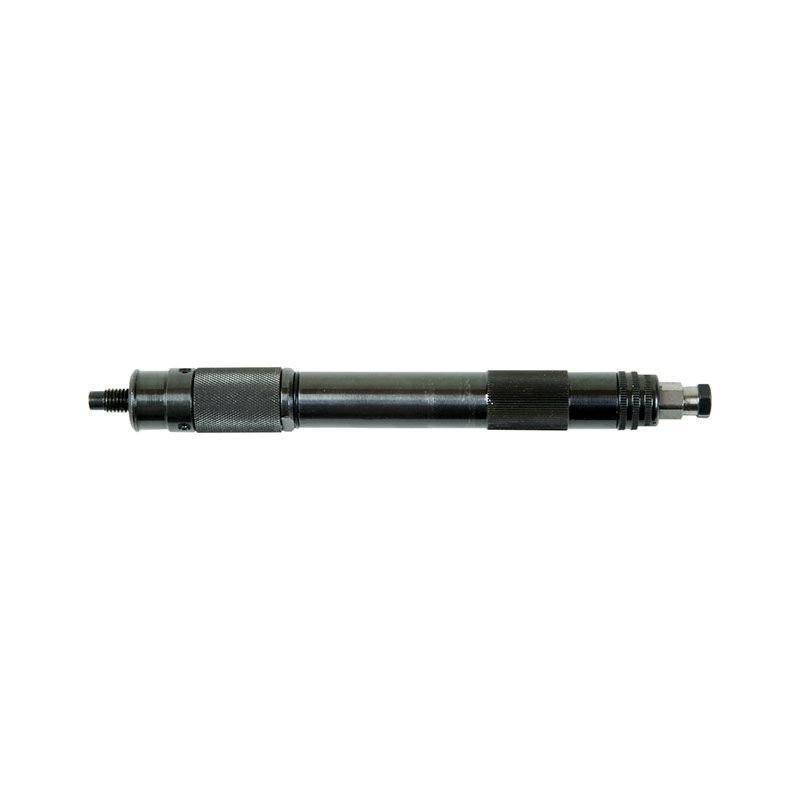

CP3000-600CR 3mm 1/8"(3 mm) PNEUMATIC DIE GRINDER - Image 2

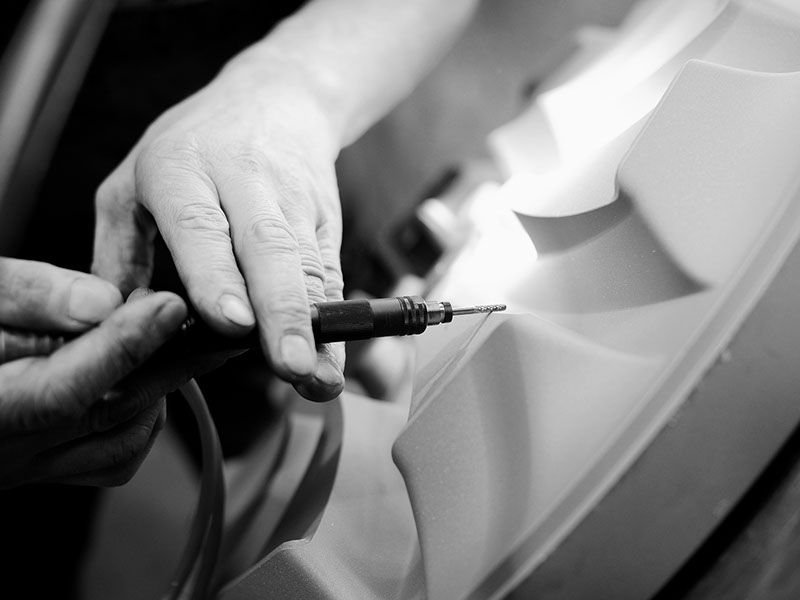

CP3000-600CR 3mm 1/8"(3 mm) PNEUMATIC DIE GRINDER - Image 3
,

CP3000-600CR 3mm 1/8″(3 mm) PNEUMATIC DIE GRINDER



The CP3000-600CR pneumatic Pencil Grinders, with a collet capacity of 1/8 (3 mm) is made of steel for great durability while also being lightweight for operator comfort. This model features a rotary valve for smooth power adjustment and a grooved housing for an incomparable working precision. Silencer hose is included.Country of origin is JP. Customs tariff is 84671110

Categories: , Brand:

Technical Specifications

Size & Weight
Length (L) :- 153 mm
Weight :- 0.14 kg
Speed
Free Speed :- 60000 rpm
Air consumption at free speed :- 3.6 l/s
Air information
Air consumption at load :- 2.6 l/s
Air inlet thread size (in) :- 1/4
Air inlet thread type :- NPT-male
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.25 in
Min hose diam (5 m hose length) :- 6 mm
Noise & vibrations
Sound Power :- 82 dB(A)
Sound Pressure :- 71 dB(A)
Vibration (m/s²) :- <2.5
Tightening Strategies
Angle Type :- Straight
Power
Max power :- 90 W
Design & Functions
Collet max capacity :- 3mm (only for Die Grinders)
Exhaust :- Rear
Governor type :- NA
Main Material type :- Steel
Rotative inlet :- No
Spindle lock :- No

Benefits

  • Steel body for a great durability
  • Equipped with rotary valve for smooth power adjustment and grooved housing for an incomparable working precision
  • Silencer hose included to reduce noise level
  • High free speed, 60,000 rpm, ensures efficiency
