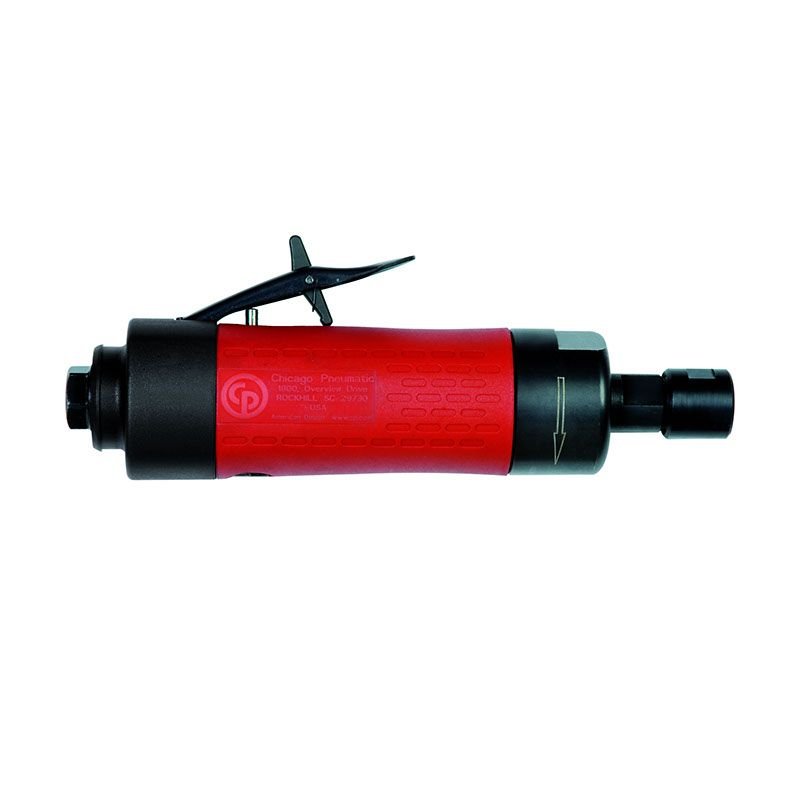

CP3000-515R 1/4"(6 mm) PNEUMATIC DIE GRINDER
CP3000-515R 1/4"(6 mm) PNEUMATIC DIE GRINDER - Image 2
,

CP3000-515R 1/4″(6 mm) PNEUMATIC DIE GRINDER



The CP3000 Series – Die Grinders, with a collet capacity of 1/4′ (6.35 mm), are defined by 12 models ranging from 0.4 hp (300 W) to 0.7 hp (500 W). All tools are fitted with a safety lever and, depending on the configuration, benefit from a front or rear exhaust. Use with either carbide burrs or mounted grinding stones, available separately.Country of origin is TW. Customs tariff is 84671110

Categories: , Brand:

Technical Specifications

Size & Weight
Length (L) :- 195 mm
Weight :- 0.86 kg
Speed
Free Speed :- 15000 rpm
Air consumption at free speed :- 14 l/s
Air information
Air consumption at load :- 12 l/s
Air inlet thread size (in) :- 1/4
Air inlet thread type :- NPT
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Noise & vibrations
Sound Power :- 91.7 dB(A)
Sound Pressure :- 80.7 dB(A)
Vibration (m/s²) :- <2.5
Tightening Strategies
Angle Type :- Straight
Power
Max power :- 500 W
Design & Functions
Collet max capacity :- 1/4 (6.4mm)
Collet/Collet holder/Collet nut type :- Erickson serie 200 type
Exhaust :- Rear
Governor type :- NA
Main Material type :- Aluminium, Composite over-sleeve
Rotative inlet :- No
Spindle lock :- No
Starting system :- Safety lever

Benefits

  • Industrial grade durability up to 1,000 hours between maintenance intervals
  • Compact and composite handle for a great operator comfort
  • Up to 0.7hp (500 W) industrial grade motor and 30,000 rpm for a perfect material removal result
