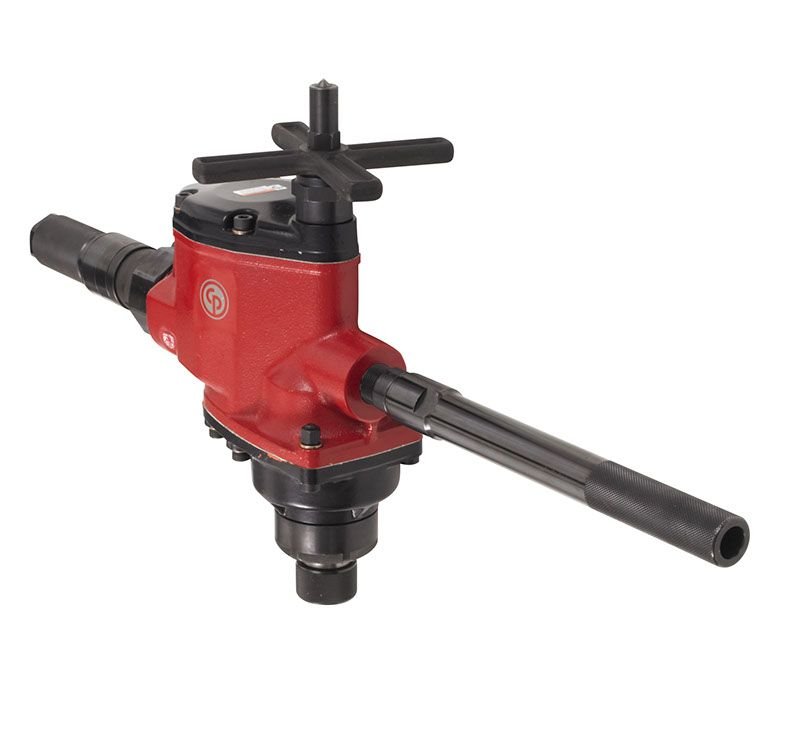

CP1820R22 7/8"(22mm) CORNER PNEUMATIC DRILL

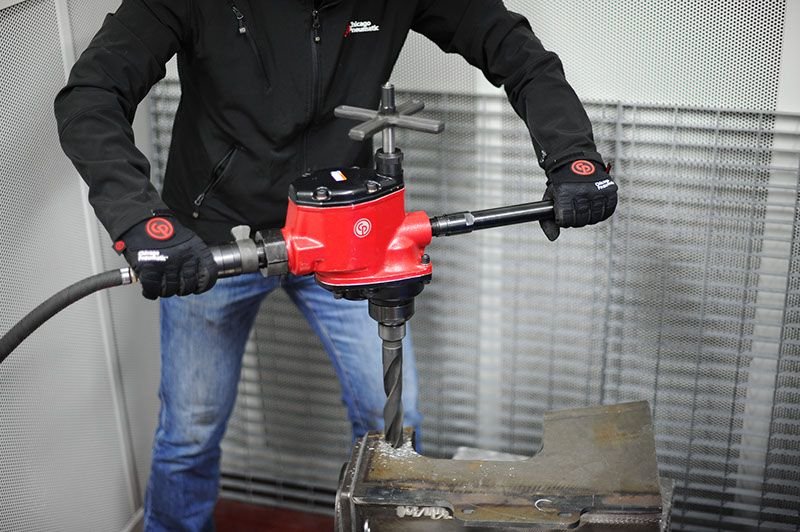

CP1820R22 7/8"(22mm) CORNER PNEUMATIC DRILL - Image 2

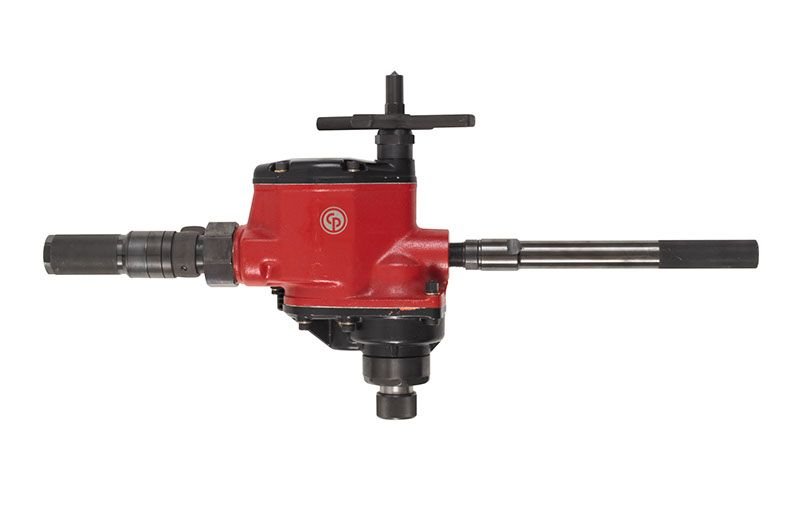

CP1820R22 7/8"(22mm) CORNER PNEUMATIC DRILL - Image 3

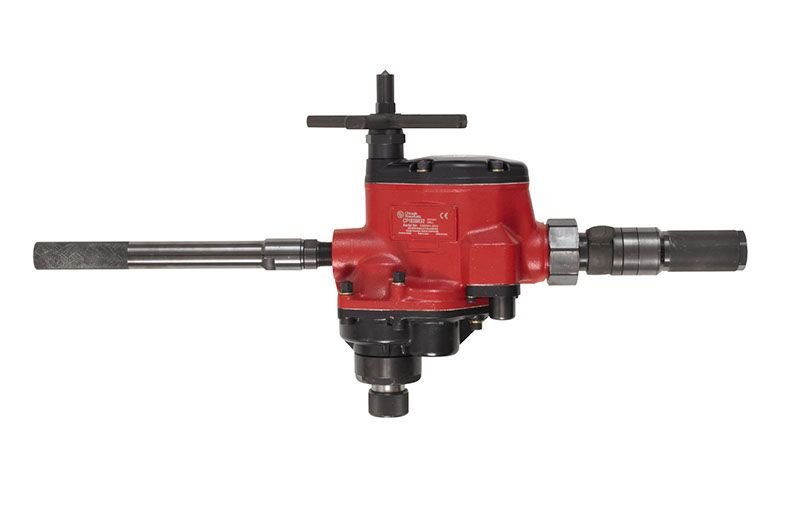

CP1820R22 7/8"(22mm) CORNER PNEUMATIC DRILL - Image 4
,

CP1820R22 7/8″(22mm) CORNER PNEUMATIC DRILL



Take advantages of this CP1820R range of durable and precise reversible corner drills. The CP1820R range is defined by 2 models with 1.2 Hp (890 W) to 2.8 Hp (2100 W) pneumatic motor from 380 to 480 RPM and from 78.4 Nm (57.8 ft.lb) to 196.0 Nm (144.6 ft.lb) stall torque. Morse tapper socket are form N° 2 to N° 3. CP1820R reversible corner drills cover a large variety of applications like drilling, reaming & tapping of mild steel, cast iron and forged steel.Country of origin is JP. Customs tariff is 84671190

Categories: , Brand:

Technical Specifications

Noise & vibrations
Sound Power :- 109 dB(A)
Sound Pressure :- 98 dB(A)
Uncertainty vibration-K :- 1.2 m/s²
Design & Functions
Chuck max capacity (in) :- 7/8
Chuck max capacity (mm) :- 22
Chuck type :- Morse taper 2
Handle type :- T-handle
Main Material type :- Aluminum
Reversible :- Yes
Starting system :- Self return rolling throttle
Air information
Air consumption at load :- 20 l/s
Air inlet thread size (in) :- 1/2
Air inlet thread type :- NPT
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.5 in
Min hose diam (5 m hose length) :- 13 mm
Power & Battery
Max power :- 890 W
Torque
Stall torque :- 78.4 Nm
Speed
Free Speed :- 480 rpm
Air consumption at free speed :- 0 l/s
Size & Weight
Length (L) :- 282 mm
Weight :- 7.3 kg

Benefits

  • Highest power with a durable and powerfull Air motor 1.2 Hp (890 W) or 2.8 Hp (2100 W).
  • Fast with high free speed
  • High capacity reversible corner drill
  • Excellent durable gearbox ensures the strong drilling
