Features

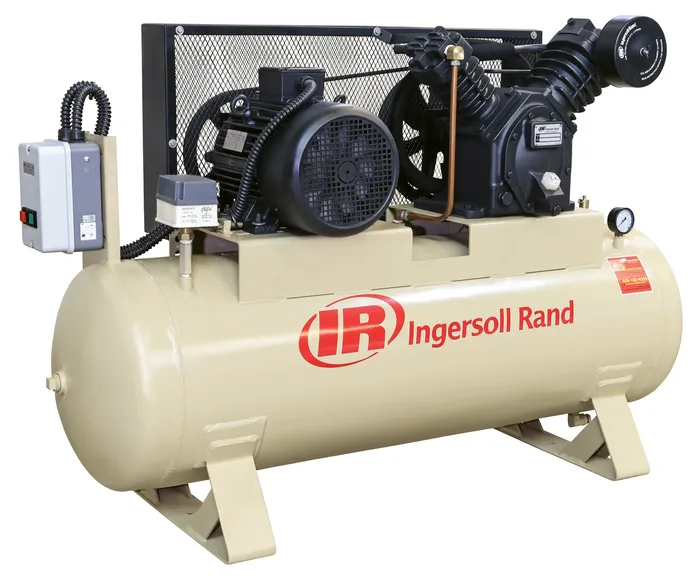

- Durable cast-iron, two-stage design offers extended pump life for years of trouble-free service
- 175 PSI maximum operating pressure
- 100% continuous duty for tough applications
- Automatic start/stop control/pressure switch operation
- Includes motor starter, oil sight glass (10-15 HP only), manual drain
| Model | Motor Range At Working Pressure | Free Air Delivery m³/hr (cfm) | Air Receiver | |
|---|---|---|---|---|
|
|
hp |
7.03 kg/cm² g |
12.3 kg/cm² g |
m³ (lit.) |
|
2340 |
3 |
15.12 (8.90) |
22.00 (13.00) |
0.150 (150) – 0.225 (225)* |
|
2475 |
5 – 10 |
24.34 (14.32) – 30.90 (18.20) |
23.78 (13.99) – 43.30 (25.00) |
0.225 (225) – 0.300 (300)* |
|
2545 |
7.5 – 12.5 |
60.30 (35.50) |
59.46 (35.00) |
0.300 (300) – 0.500 (500) |
|
7100 |
12.5 – 20 |
80.16 (47.20) |
79.50 (46.80) |
0.300 (300) – 0.500 (500) |
|
15T |
15-30 |
133.50 (79.40) |
133.02 (78.30) |
0.500 (500) |
Performance for the above models is available on request for higher working pressure upto 17.5 kg/cm² g. All performance details are subject to tolerance as per IS–5456.
Conversion Details :
• 1 cfm = 0.02831 m³/min • 1 psi = 0.07031 kg/cm²
• 1 m³ = 1000 litres • 1 hp = 0.746 kW
