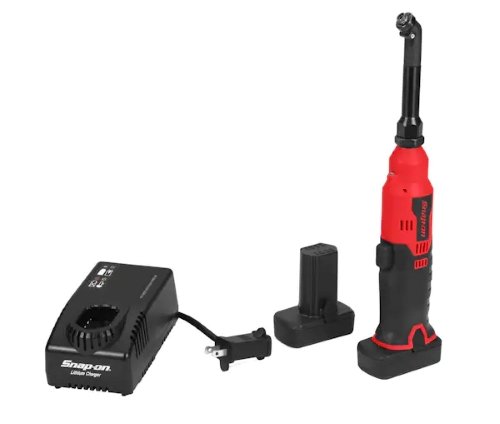

Snap On 14.4 V Cordless 45° Angle Head Mini Drill CDRR200545K2

Features

• Small compact head for greater access into places traditional pistol style drills cannot

• Low runout for precise accurate drilling

• Accepts 1/4″-28 threaded bits and accessories and standard 1/4″ accessories with adaptor (not included)

• Double ball bearing supported spindle shaft for durability

• Spiral beveled gears for durability and smooth operation

• 45° angle head for great accessibility

• Built-in LED illuminates work area

• Soft grip handle for positive tool control

• Built-in gauge indicates battery charge

• Variable-speed trigger for slow start-up

• Proven lower unit and head

https://shop.snapon.com/product/CDRR2005-Series-14.4-V-MicroLithium-Cordless-Angle-Mini-Drills/14.4-V-MicroLithium-Cordless-45%26deg%3B-Angle-Head-Mini-Drill-Kit-(Red)/CDRR200545K2

Free Speed, RPM	6,000
Length Angle Head (Front to Back), inches (mm)	1 (25)
Tool Only	CDRR200545DB
Sound Pressure Level, dB(A)	74.2
Charge Time, minutes	70
Length, inches (mm)	12 (305)
Width, inches (mm)	1.8 (46)
Battery Type	Lithium 2.5 Ah
Country of Origin	USA
Height (Head Assembly), inches (mm)	4.4 (112)
Height with Battery, inches (mm)	13.1 (333)
Battery (qty)	CTB8174 (2)
Vibration Level, m/s²	8.02
RPM (high)	6,000
Warranty (battery)	1 Year
Gear Box Type	Single-Speed
Height, inches (mm)	3.3 (84)
Weight with Battery, lb (kg)	1.4 (.64)
Battery Voltage	14.4
Warranty (tool and charger)	1 Year
Optional 1/4″ Collet	YA409-6
Operating Temperature Range	-4–120 °F (-20–60 °C)
Chuck Capacity	1/4″–28
Battery Charger	CTC772A
Bit Thread Size	1/4″-28
