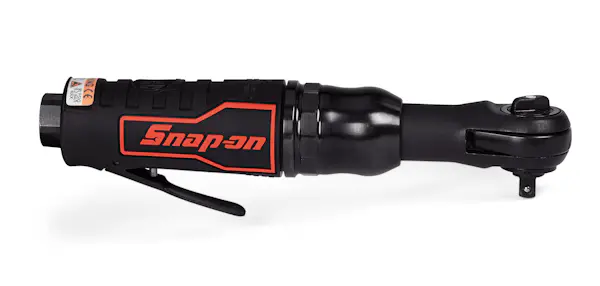

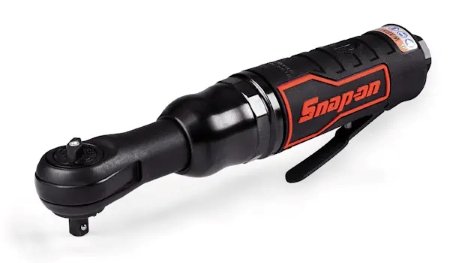

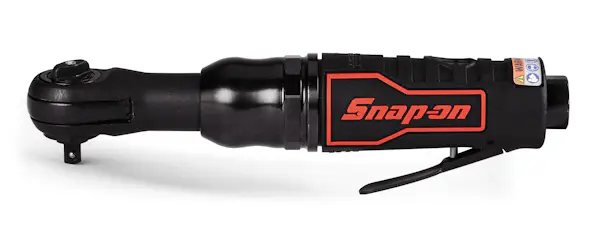

Snap On 1/4″ Drive Mini Air Ratchet PTR2500

Features

• 46 ft-lb (62 N·m) of bolt breakaway torque and 35 ft-lb (48 N·m) of working torque

• 225 RPM free speed in a compact size for greater access to tight spaces

• Balanced, lightweight housing for superior comfort and control with less user fatigue

• Large forward/reverse knob makes it easy to switch directions, even with greasy hands

• Soft grip handle provides increased comfort and insulation from the cold, while reducing vibration

• Zerk fitting allows the ratchet head to be lubricated for longer tool life

• Variable-speed trigger allows for slow motor start-ups

Categories: Pneumatic Tools, Ratchets

https://shop.snapon.com/product/Air-Ratchets-(Snap-on)/1-4%22-Drive-Mini-Air-Ratchet-(Red)/PTR2500

Free Speed, RPM	225
Length, inches (mm)	7.8 (198)
Vinyl Boot	YA905 (included)
Air Consumption, Free Speed, CFM (SCFM) [l/min]	1.7 (11) [48]
Sound Level dB(A) Power	65.6
Air Inlet Thread Size, inches (NPT)	1/4 (18)
Country of Origin	USA
Sound Level dB(A) Pressure	84
Warranty	1 Year
Uncertainty, K, (Vibration)	2.5 m/s²
Vibration Level, m/s²	2.5
Air Consumption, Working, CFM (SCFM) [l/min]	1.4 (10) [40]
Recommended Hose Size, inches (mm)	3/8 (10)
Air Pressure Working, PSI (kPa)	90 (620)
Uncertainty (K), dB	3
Drive Size, inches (mm)	1/4 (6)
Horse Power, HP	0.25
Weight, lb (kg)	1.4 (.6)
Maximum Air Hose Length, ft (m)	30 (10)
