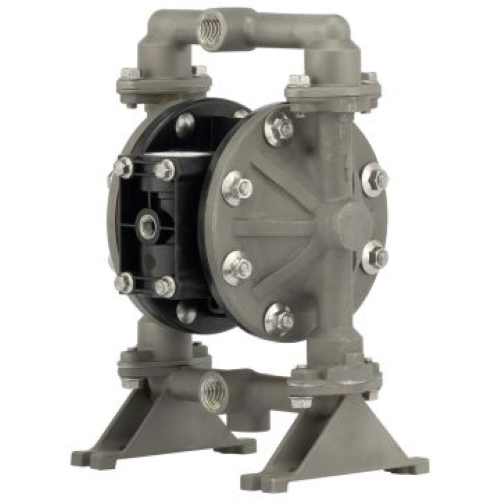

Metallic Diaphragm Pump 1/2”

Description

• Ratio :
  1:1
• Maximum Flow :
  (ball) 13 g.p.m. (49.2 l.p.m.)
  (duckbill) 10 g.p.m. (37.9 l.p.m.)
• Displacement per cycle :
  (ball) 0.04 g.p.m. (0.15 l.p.m.)
  (duckbill) 0.032 g.p.m. (0.12 l.p.m.)
• Air Inlet :
  (Female) 1/4 – 18 N.P.T.F. – 1
• Fluid Inlet/Outlet :
  1/2 – 14 N.P.T.F. – 1
• Max. operating pressure :
  100 psi (6.9 bar)
• Suspended solids max. dia. :
  (ball) 3/32” (2.4-mm)
  (duckbill) fibers
• Weight lbs (kg) :
  Polypropylene 7.2 (3.3)
  Groundable Acetal 8.8 (4.0)
  Kynar PVDF 9.5 (4.3)
• Maximum dry suction lift ft(m) :
  15 (4.6))
• Sound Level :
  70 PSI
  60 Cycles/Min.
  71.1 db(A)
• Muffler :
  Integral, Included
