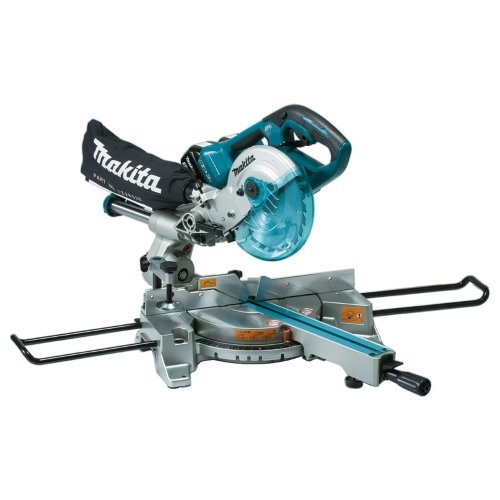

Makita Cordless Slide Compound Miter Saw DLS714

18V X2 (36V) LXT BL ADT Cordless 190 mm (7-1/2”) Dual Slide Compound Miter Saw

  • 18V solution for corded power demands
  • Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform
  • High power delivered by 36V (18Vx2) DC Brushless motor enables to cut as fast as if you were using a corded slide compound miter saw
  • Large cutting capacity; Crosscuts up to 52 x 300 mm (2-1/16″ x 11-3/4″) at 90°
  • Miters 0-47 ° left and 0-57 ° right; bevels 0-45 ° left and 0-5 ° right
  • ADT (Automatic Torque Drive Technology) adjusts speed and torque during operation for optimum performance
  • 4-Steel Rail Sliding System increaes rigidity to produce superior cuts
  • Powerful BL Motor delivers 5,700 RPM for fast cutting
  • Large dimensional lumber cutting capacity: 52 x 300 mm (2″ x 12″) at 90° and 52 x 212 mm (2″ x 8″) at 45°
  • Positive miter stops at: 0°, 15°, 22.5°, 30° and 45° left and right
  • Linear ball bearing system engineered to deliver “dead-on” accurate cuts
  • Large aluminum base supports large stock for efficient cutting
  • Holders are provided on both sides of the tool to hold long workpieces horizontally
  • Electric brake for maximum productivity
  • LED indicator panel for 2 indications (1) Battery fuel gauge (2) Indication of Automatic speed control
  • Soft elastomer carrying grip; provides sure but comfortable grip for easy job site portability
  • Dust bag for a cleaner work environment
  • Battery protection circuit protects against overloading, over-discharging and over-heating
Categories: ,

Description

  • Blade Diameter:
    190 mm (7-1/2″)
  • Miter Angle:
    47° L / 57° R
  • Bevel Angle:
    45° L / 5° R
  • Max Cutting Capacity:
    90°: 52 x 300 mm (2-1/16″ x 11-3/4″)                                                                                                                                        at 45° left: 40×300 mm (1-9/16″x11-3/4″)                                                                                                                                at 5° right: 40×300 mm (1-9/16″x11-3/4″)
  • No Load Speed (RPM):
    5,700
  • Sound Pressure Level:
    88 dB(A)
  • Sound Power Level:
    97 dB(A)
  • Noise K Factor:
    3 dB(A)
  • Vibration Level:
    2.5 m/s² or less
  • Vibration K Factor:
    1.5 m/s²
  • Dimensions (L x W x H):
    655x430x445 mm (25-3/4″x17″x17-1/2″)
  • Net weight:
    12.6 kg (27.8 lbs.)
  • https://makita.in/wp-content/uploads/2019/12/DLS714_view.pdf
