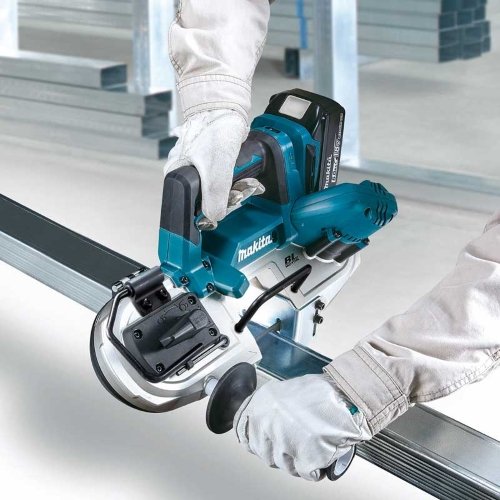

Makita Cordless Portable Band Saw DPB183

18V LXT BL Cordless Portable Band Saw

  • BL motor delivers 3.2 m/s (630 ft./min.) blade speed for faster cutting
  • BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
  • BL motor is electronically controlled to optimize battery energy use for longer run time per charge
  • BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
  • Stable cutting with highly rigid aluminum structure; Rigid aluminum die-cast frame and gear housing prevents the blade from sliding off the wheel; The rigidity also allows for increasing the tension on the blade to prevent the blade from slipping on the wheel
  • 66 mm cutting capacity; Large cutting capacity allows for single-pass cutting of 65 mm x 45 mm light gauge steel stud
  • Constant speed control minimizes the reduction in blade speed to provide stable cutting
  • Variable speed control by dial; An optimum cutting speed can be selected to suit application
  • Catch bracket protects the tool body from damage by hitting against workpiece
  • Electric brake for maximum productivity and increased operator safety
  • Aluminum diecast frame and gear housing for increased durability
  • Drastically reduced size has been achieved by relocating the handle for easier operation even in tight spaces
  • Easy blade track adjustment simply by turning the screw
  • Redesigned structure of wheel cover and frame (lowered aluminum portion than wheel) for easy installation/removal of blade when the wheel cover is open
  • Twin LED job light with pre-glow and afterglow functions illuminates the work area
  • Adjustable stopper plate convenient to cut pipes near walls, floors and ceilings
  • Tool hook secures the tool when not in use
  • Easy-to-grip handle with elastomer surface for anti-slip
  • Wheel cover encloses the blade outside the cutting area making the saw suitable for one-handed operation. Lock-off button prevents accidental startup. On-tool storage for hex wrench. Battery protection circuit protects against overloading, over-discharging and over-heating.
Categories: ,

Description

  • Capacity :
    Round: 66 mm (2-5/8″)                                                                                                                                                  Square: 66 x 66 mm (2-5/8″ x 2-5/8″)
  • Blade Speed :
    0 – 3.2 m/s (0 – 630 ft/min.)
  • Blade Size :
    Length: 835 mm (32-7/8″)                                                                                                                                                    Width: 13 mm (1/2″)                                                                                                                                                  Thickness: 0.5 mm (0.02″)
  • Max Output :
    490 W
  • Vibration Level :
    Cutting Metal: 2.5 m/s² or less
  • Vibration K Factor :
    Cutting Metal: 1.5 m/s²
  • Sound Pressure Level :
    80 dB(A)
  • Noise K Factor :
    3 dB(A)
  • Dimensions (L x W x H) :
    392x174x242 mm (15-1/2″x6-7/8″x9-1/2″)
  • Net weight :
    3.6 – 3.9 kg (7.9 – 8.6 lbs.)
  • https://makita.in/wp-content/uploads/2020/08/DPB183_leaflet.pdf
