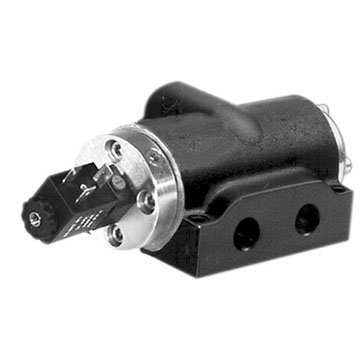

K Series Pneumatic Valves

Styles and Options
5-Port, 4-Way, 2 and 3-position directional control valves.
Port Sizes: 3/8″, 1/2″, 3/4″, & 1″
Seven Actuator Styles
Manual, Hand Lever, Pedal, Treadle, Palm Button, electric, (Single Solenoid & Double Solenoid), Pneumatic, (Pilot & Bleed)

Description

1. Aluminum bodySand Cast aluminum body provides a rugged, reliable valve.
2. Buna N SealsStandard seals are Buna N, for extended valve life. Viton seals are available for high temperature applications. Consult factory for ordering information.
3. Sturdy SpoolsK-Series valves have an aluminum spool. This slides in a hard anodized PTFE non-stick aluminum sleeve. (3/8″ or 1/2″ models).The sleeves are brass on 3/4″ and 1″ models.
4. Standard Solenoid Override Feature3/4″ and 1/2″ models only.
5. External SolenoidExternal Solenoid supply port enables valve operation for vacuum service or low pressure operations. For proper supply connection, consult factory. (Remove end cap and rotate gasket 90-degress for remote solenoid supply).
