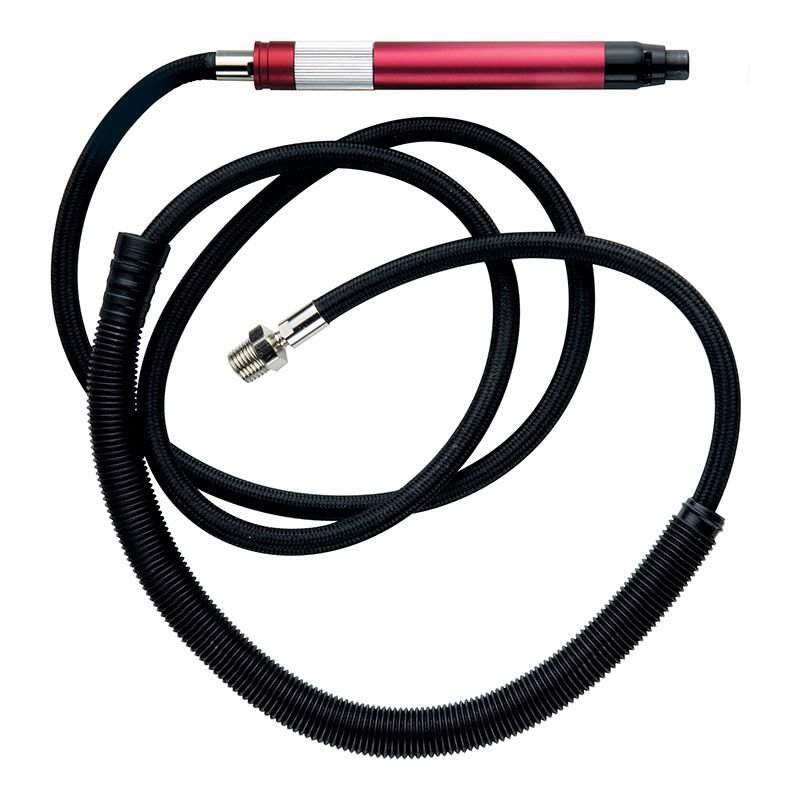

CP9104Q KIT- 1/8"(3 mm) PNEUMATIC PENCIL DIE GRINDER
CP9104Q KIT- 1/8"(3 mm) PNEUMATIC PENCIL DIE GRINDER - Image 2
,

CP9104Q KIT- 1/8″(3 mm) PNEUMATIC PENCIL DIE GRINDER

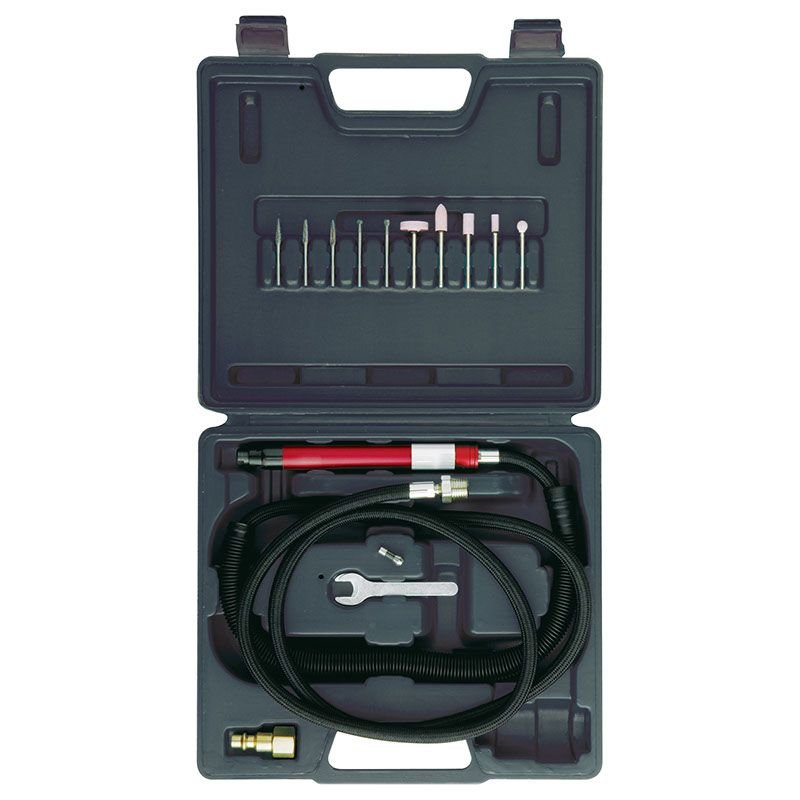

This very compact pencil die grinder will fit your most constrained access applications to keep your quality at the highest standard. It features a high speed of 60,000 rpm to meet your needs when precision is a key factor in your grinding applications. With only 1/2 lbs – 0.2 kg, it offers a high level of user comfort. Available as a bare tool or in kit form.Country of origin is TW. Customs tariff is 84671110

Categories: , Brand:

Technical Specifications

Size & Weight
Length (L) :- 133 mm
Weight :- 0.2 kg
Speed
Free Speed :- 60000 rpm
Air consumption at free speed :- 3.3 l/s
Air information
Air inlet thread size (in) :- 1/4
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Noise & vibrations
Sound Power :- 82 dB(A)
Sound Pressure :- 71 dB(A)
Vibration (m/s²) :- <2.5
Tightening Strategies
Angle Type :- Straight
Power
Max power :- 40 W
Design & Functions
Collet max capacity :- 1/8 (3mm)
Exhaust :- Rear
Governor type :- NA
Main Material type :- Aluminium
Rotative inlet :- No
Spindle lock :- No
Starting system :- Safety lever

Benefits

  • Very low noise level for greater comfort
  • High free speed allows for greater accuracy
  • Silencer hose included
  • 3 mm and 1/8″ collets included
  • Lightweight for great maneuverability
