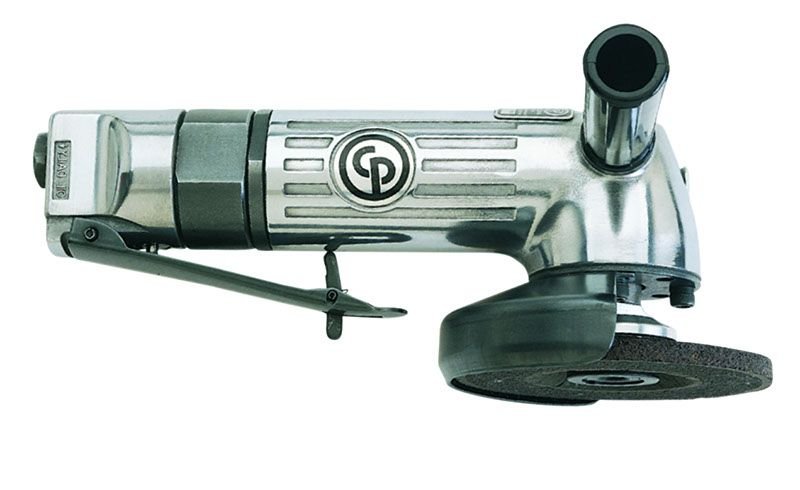

CP854 4″(100 mm) PNEUMATIC GRINDER

Designed for general maintenance applications, the CP854 angle grinder series offer efficiency with its power of 0.6 hp (450W) and high durability with its helical bevel gear design & aluminum alloy housing. The range consists of 2 models: 1x 4″ wheel (3/8″- 24 spindle thread) and 1x 5″ wheel (M10 spindle thread).Country of origin is JP. Customs tariff is 84671110

Categories: , Brand:

Technical Specifications

Speed
Free Speed :- 13000 rpm
Air consumption at free speed :- 11 l/s
Design & Functions
Autobalancer :- No
Guard positions :- 0
Main Material type :- Aluminium
Output Spindle Thread :- 3/8-24 UNF
Rotative guard type :- Screws
Spindle lock :- No
Starting system :- Safety lever
Swiveling guard :- Key
Wheel/Disc diameter (in) :- 4
Wheel/Disc diameter (mm) :- 100
Noise & vibrations
Sound Power :- 96 dB(A)
Sound Pressure :- 85 dB(A)
Uncertainty vibration-K :- 1.5 m/s²
Vibration :- 4.9 m/s²
Air information
Air consumption at load :- 11 l/s
Air inlet thread size (in) :- 1/4
Air inlet thread type :- NPT
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Power
Max power :- 525 W
Size & Weight
Length (L) :- 229 mm
Weight :- 1.7 kg

Benefits

  • High performance motor for high efficiency with its 0.6 hp (450 W)
  • Helical bevel gear design & aluminum alloy housing for high durability
  • 4″ (100 mm) wheel capacity
