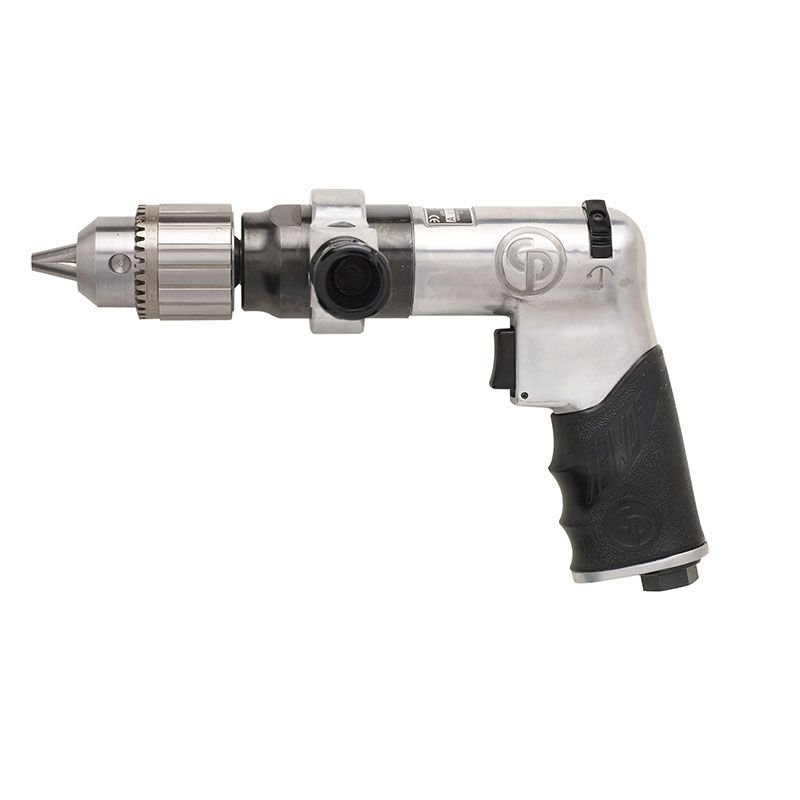

CP789HR 1/2"(13 mm) PNEUMATIC DRILL

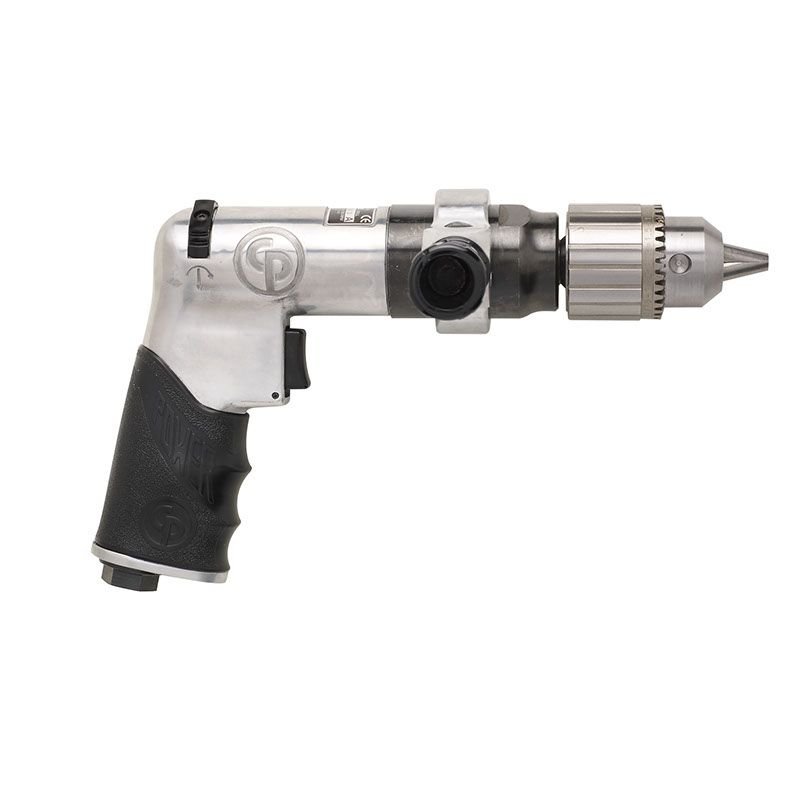

CP789HR 1/2"(13 mm) PNEUMATIC DRILL - Image 2
,

CP789HR 1/2″(13 mm) PNEUMATIC DRILL



Designed for body shops or general maintenance applications such as drilling, honing, reaming and hole sawing, the CP785 Series offers high performance with its power of 0.4 hp (320 W) and high durability with its aluminum housing, its industrial quality Jacobs chuck and gearbox. This model belongs to the CP789 series which is composed of 3 models: 2 x 3/8″ drills (26,000 and 42,000 rpm) and 1 x 1/2″ drills (with side handle).Country of origin is JP. Customs tariff is 84671190

Categories: , Brand:

Technical Specifications

Noise & vibrations
Sound Power :- 110 dB(A)
Sound Pressure :- 99 dB(A)
Vibration (m/s²) :- <2.5
Design & Functions
Chuck max capacity (in) :- 1/2
Chuck max capacity (mm) :- 13
Chuck type :- Keyed
Handle type :- Pistol
Main Material type :- Aluminum
Reversible :- Yes
Starting system :- Trigger
Trigger type :- Progressive
Air information
Air consumption at load :- 14 l/s
Air inlet thread size (in) :- 1/4
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Power & Battery
Max power :- 320 W
Torque
Stall torque :- 21.1 Nm
Speed
Free Speed :- 500 rpm
Air consumption at free speed :- 15 l/s
Size & Weight
Length (L) :- 203 mm
Weight :- 1.47 kg

Benefits

  • Thermoplastic rubber handle grip for better operator comfort
  • Teasing trigger allowing more control to start holes
  • Industrial quality Jacobs chuck and gearbox for high durability
