Technical Specification
Power
Max power :- 210 W
Speed
Free Speed :- 10000 rpm
Air consumption at free speed :- 8.5 l/s
Overspeed shut-off :- No
Noise & vibrations
Sound Power :- 89 dB(A)
Sound Pressure :- 78 dB(A)
Uncertainty vibration-K :- 3.2 m/s²
Vibration :- 9.6 m/s²
Air information
Air consumption at load :- 8.5 l/s
Air inlet thread size (in) :- 1/4
Air inlet thread type :- NPT
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Design & Functions
Abrasive Pad Attachment :- Hook&Loop
Autobalancer :- No
Delta Abrasive Pad Size (in) :- 3-7/8×5-5/8
Delta Abrasive Pad Size (mm) :- 100×144
Exhaust :- Rear
Main Material type :- Aluminium, Composite over-sleeve
Orbit Size (in) :- 3/32
Orbit Size (mm) :- 2.5
Orbit type :- Jitterbug
Pad holes number :- 4
Pad type :- Foam
Rotative inlet :- No
Starting system :- Lever
Vacuum :- Non vacuum
Size & Weight
Height (H) :- 100 mm
Length (L) :- 185 mm
Width (W) :- 100 mm
Weight :- 0.66 kg
Benefits
- Operator comfort with ergonomic palm shape in soft grip for perfect control
- Productivity increased with low vibration level and low noise level
- Powerful motor 0.3 hp (210 W) for vertical and horizontal applications

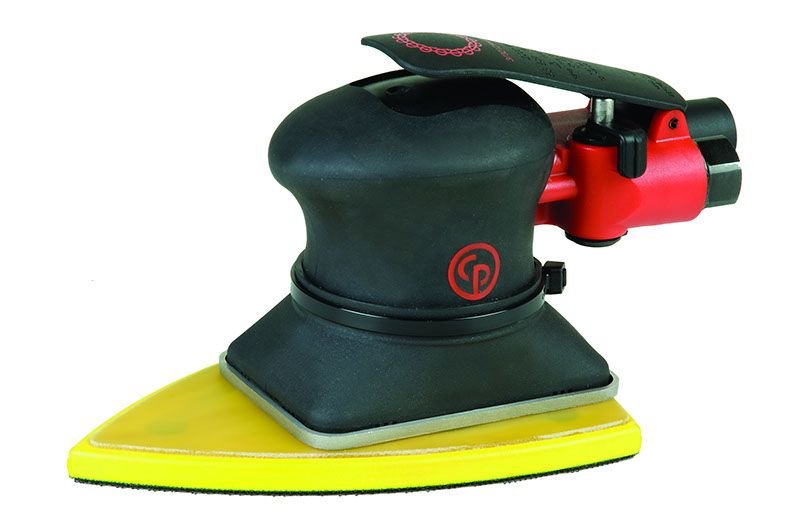

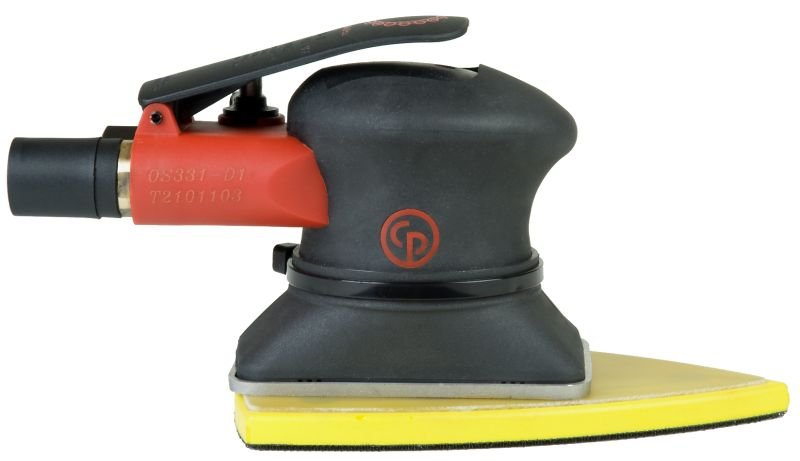

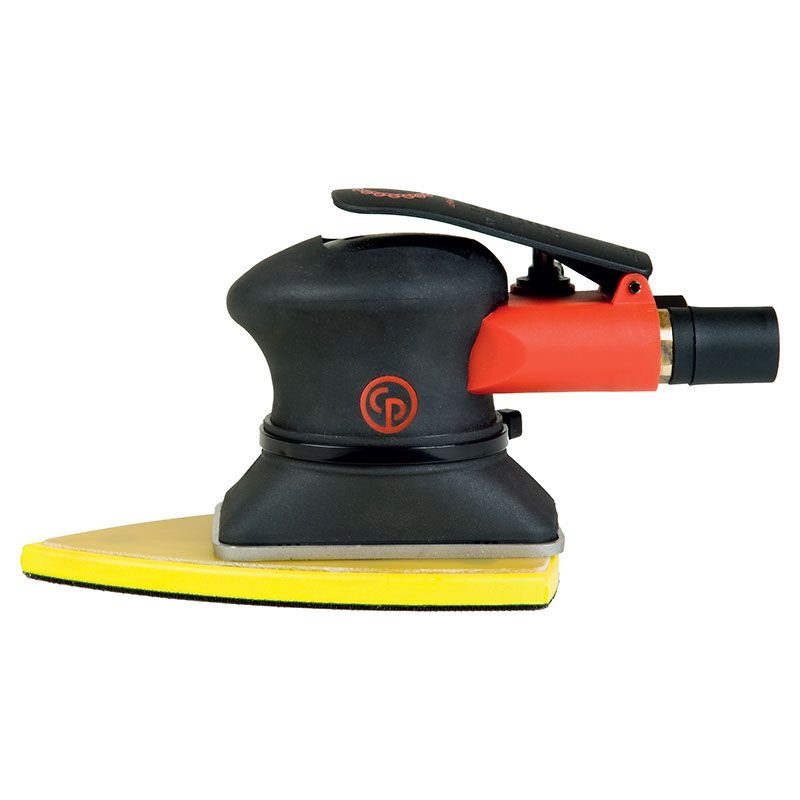

- Rectangle, delta random orbital with palm sander with 3/32″(2.5mm) orbit for surface preparation from body filler to paint primer
