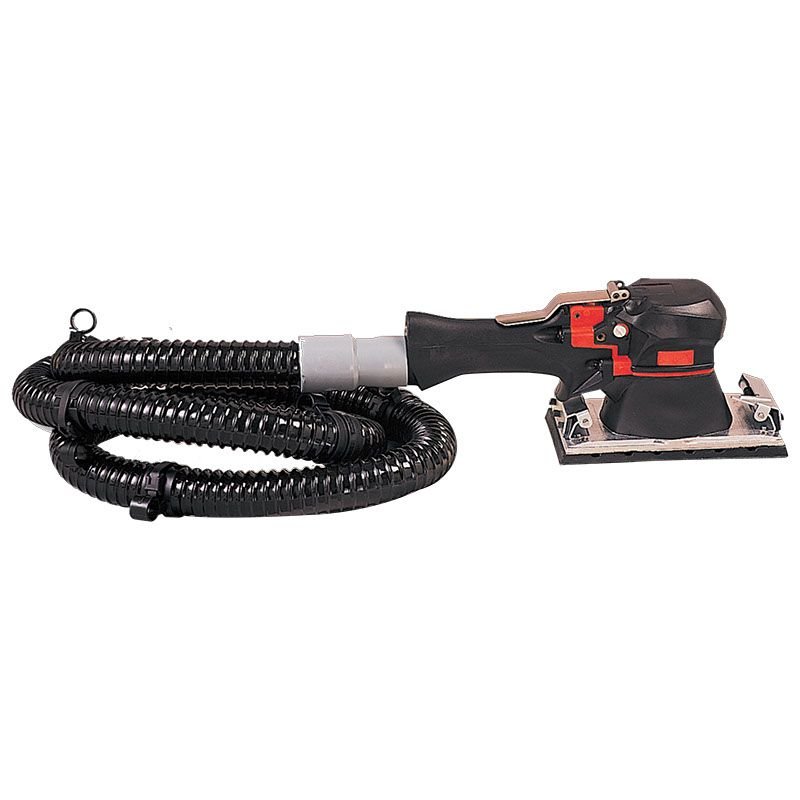

CP5506-R8HSV 375W orbital sander for 215 x 113 mm pads, 3/16" (5mm) orbit, self-vacuum.
CP5506-R8HSV 375W orbital sander for 215 x 113 mm pads, 3/16" (5mm) orbit, self-vacuum. - Image 2
,

CP5506-R8HSV 375W orbital sander for 215 x 113 mm pads, 3/16″ (5mm) orbit, self-vacuum.



Designed for industrial sanding, finishing, and pre-polishing tasks, the CP55 Series pneumatic orbital sander delivers efficient performance with its 0.5 hp (375 W) motor and excellent comfort thanks to its ergonomic palm-shaped soft grip. Available in various models: Non-Vacuum, Central Vacuum and Self Vacuum.Country of origin is HU. Customs tariff is 84671110

Categories: , Brand:

Technical Specifications

Design & Functions
Pad holes number :- 0
Palm grip :- No
Starting system :- Safety lever
Vacuum :- Self vacuum
Noise & vibrations
Sound Power :- 92 dB(A)
Sound Pressure :- 81 dB(A)
Uncertainty vibration-K :- 3 m/s²
Vibration :- 8.3 m/s²
Air information
Air consumption at load :- 11 l/s
Air inlet thread size (in) :- 1/4
Air inlet thread type :- NPT
Min hose diam (16 ft hose length) :- 0.31 in
Min hose diam (5 m hose length) :- 8 mm
Power
Max power :- 375 W
Size & Weight
Height (H) :- 123 mm
Length (L) :- 266 mm
Weight :- 1.9 kg
Speed
Free Speed :- 8000 rpm
Air consumption at free speed :- 11 l/s

Features

  • Integrated motor silencer
  • 2000 operating hours with low maintenance
  • Lubrication-free motor

Benefits

  • Maximum comfort: Ergonomic palm shape with soft grip for better control
  • Powerful performance: 375 W (0.5 hp) motor for efficient sanding across demanding applications
  • Superior finish: orbital motion delivers smooth and consistent surface preparation
