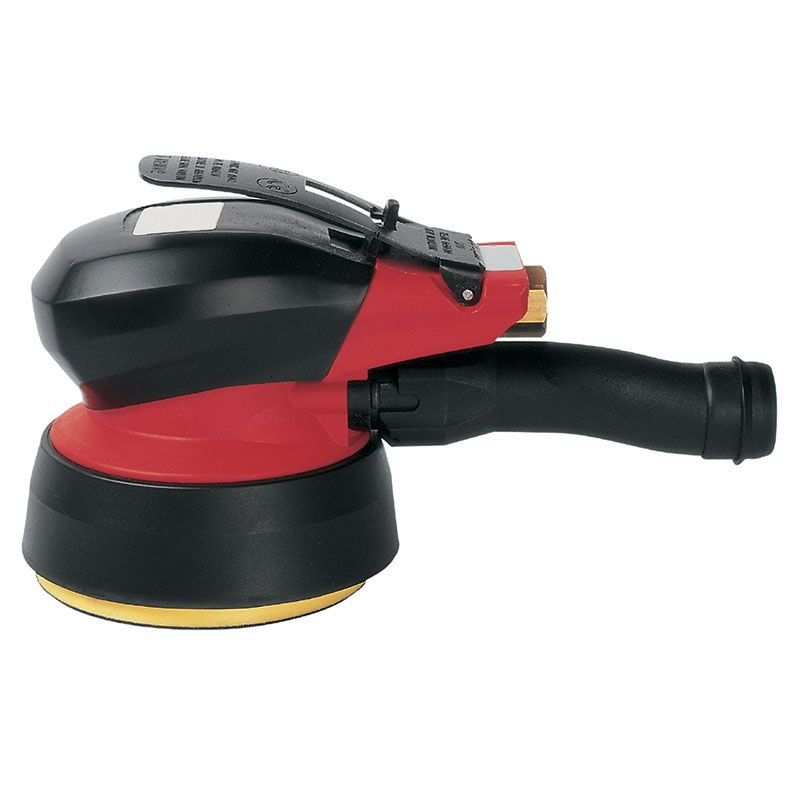

CP5306-35SV 210W orbital sander for 3 1/2" (89mm) pads, 3/16" (5mm) orbit, self-vacuum

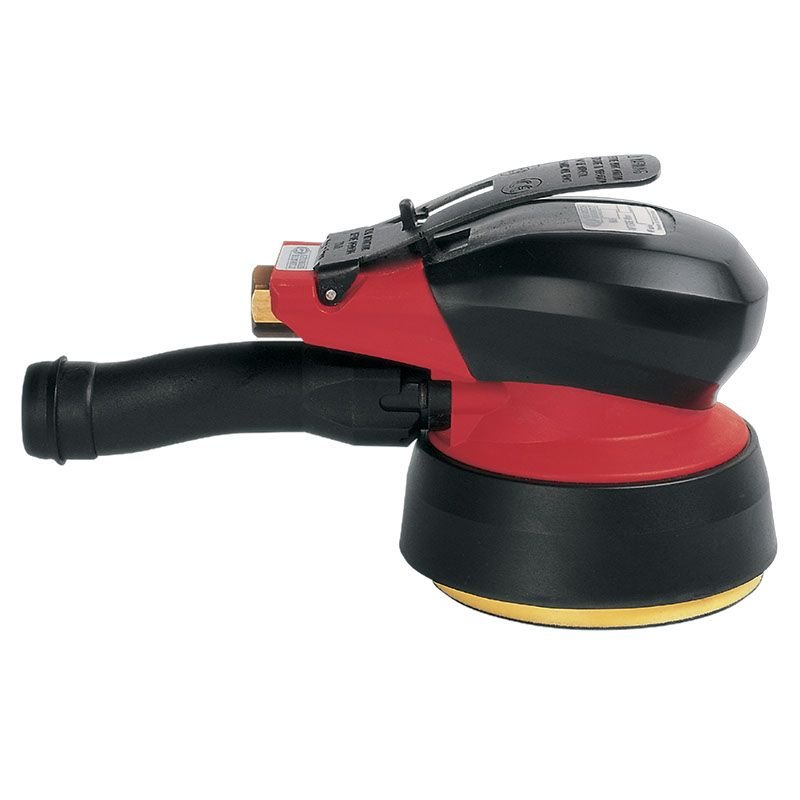

CP5306-35SV 210W orbital sander for 3 1/2" (89mm) pads, 3/16" (5mm) orbit, self-vacuum - Image 2
,

CP5306-35SV 210W orbital sander for 3 1/2″ (89mm) pads, 3/16″ (5mm) orbit, self-vacuum



Designed for industrial sanding, finishing, and pre-polishing tasks, the CP53 Series pneumatic orbital sander delivers efficient performance with its 0.3 hp (210 W) motor and excellent comfort thanks to its ergonomic palm-shaped soft grip. Available in various models: Non-Vacuum, Central Vacuum and Self Vacuum.Country of origin is HU. Customs tariff is 84671110

Categories: , Brand:

Technical Specifications

Power
Max power :- 0210 W
Speed
Free Speed :- 12000 rpm
Air consumption at free speed :- 8 l/s
Noise & vibrations
Sound Power :- 96 dB(A)
Sound Pressure :- 85 dB(A)
Uncertainty vibration-K :- 1.7 m/s²
Vibration :- 3.8 m/s²
Air information
Air consumption at load :- 8 l/s
Air inlet thread size (in) :- 1/4
Air inlet thread type :- NPT
Min hose diam (16 ft hose length) :- 0.25 in
Min hose diam (5 m hose length) :- 6 mm
Design & Functions
Circular Abrasive Pad Size (in) :- 3-1/2
Circular Abrasive Pad Size (mm) :- 90
Orbit Size (in) :- 3/16
Orbit Size (mm) :- 5
Pad :- Circular
Pad holes number :- 0
Palm grip :- Yes
Starting system :- Safety lever
Vacuum :- Self vacuum
Size & Weight
Height (H) :- 95 mm
Length (L) :- 186 mm
Weight :- 0.8 kg

Features

  • Integrated motor silencer
  • 2000 operating hours with low maintenance
  • Lubrication-free motor

Benefits

  • Maximum comfort: Ergonomic palm shape with soft grip for better control
  • Powerful performance: 210 W (0.3 hp) motor for efficient sanding across demanding applications
  • Superior finish: orbital motion delivers smooth and consistent surface preparation
