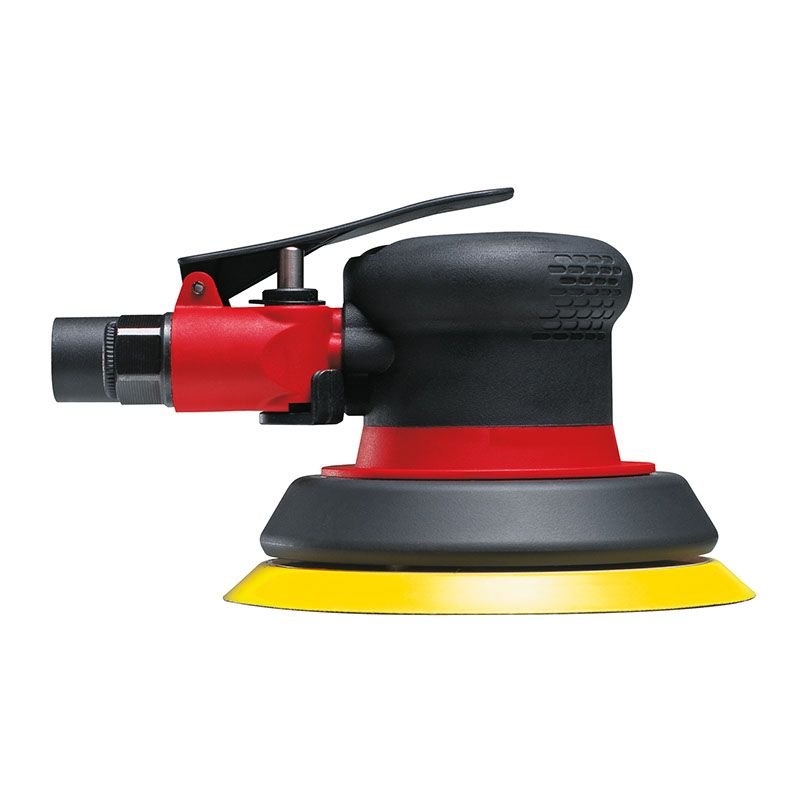

CP3510 5"(125 mm) PNEUMATIC ORBITAL SANDER
,

CP3510 5″(125 mm) PNEUMATIC ORBITAL SANDER



Designed for body shops applications like surface preparation, this 5″ orbital sander (3/16″ – 5mm orbit) series offers efficiency with its power of 0.3 hp (210 W) and great ergonomics with its palm shape in soft grip. This model belongs to the CP351X series which is composed of 6 models: 2x Non Vacuum (NV) model (Hook & Loop and PSA pad), 2x Self Vacuum (SV) model (Hook & Loop and PSA pad) and 2x Central Vacuum (CV) model (Hook & Loop and PSA pad)Country of origin is TW. Customs tariff is 84671110

Categories: , Brand:

Technical Specifications

Power
Max power :- 210 W
Speed
Free Speed :- 12000 rpm
Air consumption at free speed :- 9.2 l/s
Overspeed shut-off :- No
Noise & vibrations
Sound Power :- 88.6 dB(A)
Sound Pressure :- 81 dB(A)
Uncertainty vibration-K :- 1.3 m/s²
Vibration :- 3 m/s²
Air information
Air consumption at load :- 7.6 l/s
Air inlet thread size (in) :- 1/4
Air inlet thread type :- NPT
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Design & Functions
Abrasive Pad Attachment :- Hook&Loop
Autobalancer :- No
Circular Abrasive Pad Size (in) :- 5
Circular Abrasive Pad Size (mm) :- 125
Exhaust :- Rear
Main Material type :- Aluminium, Composite over-sleeve
Orbit Size (in) :- 3/16
Orbit Size (mm) :- 5
Orbit type :- Random
Output Spindle Thread :- 5/16-24 UNF
Pad holes number :- 0
Pad type :- Foam
Rotative inlet :- No
Starting system :- Lever
Vacuum :- Non vacuum
Size & Weight
Height (H) :- 105 mm
Length (L) :- 160 mm
Width (W) :- 150 mm
Weight :- 0.74 kg

Benefits

  • Operator comfort with ergonomic palm shape in soft grip for perfect control
  • Productivity increased with low vibration level and low noise level
  • Powerful motor 0.3 hp (210 W) for vertical and horizontal applications
  • 5″ (125 mm) random orbital with palm sander with 3/16″ (5mm) orbit for surface preparation from body filler to paint primer
