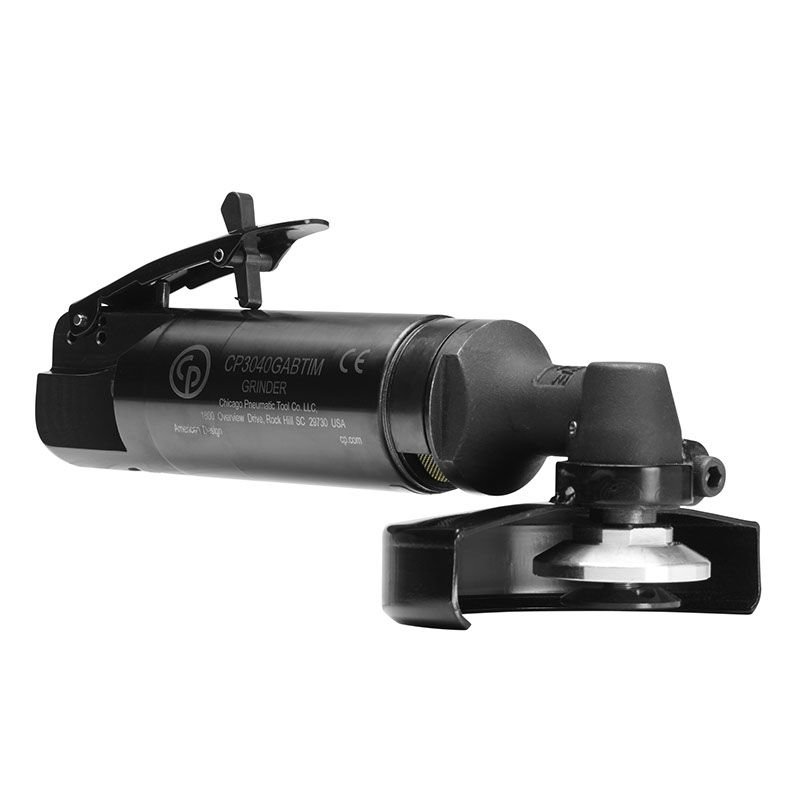

CP3040GABTIM 4"(100 mm) PNEUMATIC ANGLE GRINDER

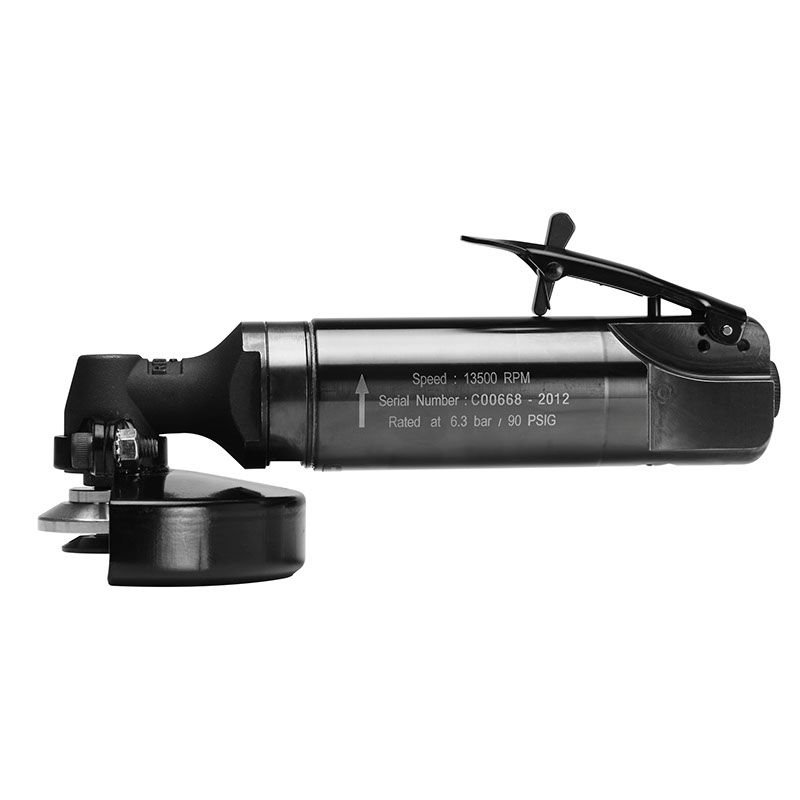

CP3040GABTIM 4"(100 mm) PNEUMATIC ANGLE GRINDER - Image 2

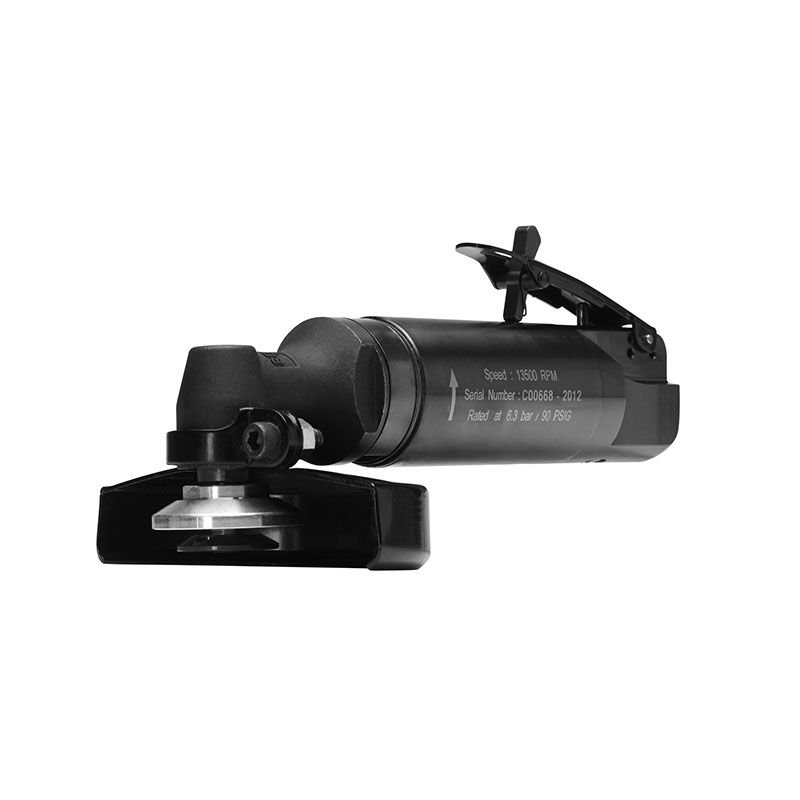

CP3040GABTIM 4"(100 mm) PNEUMATIC ANGLE GRINDER - Image 3

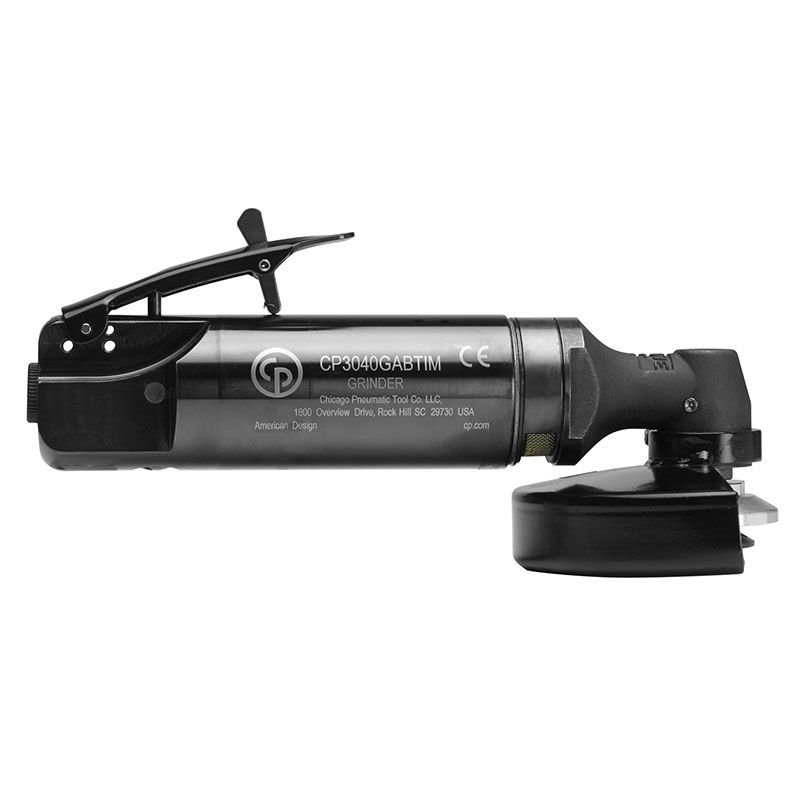

CP3040GABTIM 4"(100 mm) PNEUMATIC ANGLE GRINDER - Image 4
,

CP3040GABTIM 4″(100 mm) PNEUMATIC ANGLE GRINDER



The CP3040, 4″ (100 mm) steel construction angle grinder is a perfect match when working in industrial maintenance and production. With a generated power of 0.5 hp (375 W) and designed with a 3/8-24′ spindle thread. CP3040 is ultra compact and provide a free speed of 13 500 rotation per minutes. 2 models available: Standard and extended shaft.Country of origin is TW. Customs tariff is 84671110

Categories: , Brand:

Technical Specifications

Speed
Free Speed :- 13500 rpm
Air consumption at free speed :- 15 l/
Design & Functions
Autobalancer :- No
Guard max rotation :- 360 °
Guard positions :- 0
Main Material type :- Steel
Output Spindle Thread :- 3/8-24 UNF
Rotative guard type :- Band
Spindle lock :- No
Starting system :- Safety lever
Swiveling guard :- Key
Wheel/Disc diameter (in) :- 4
Wheel/Disc diameter (mm) :- 100
Noise & vibrations
Sound Power :- 99 dB(A)
Sound Pressure :- 88 dB(A)
Uncertainty vibration-K :- 2.4 m/s²
Vibration :- 7.2 m/s²
Air information
Air consumption at load :- 12 l/s
Air inlet thread size (in) :- 3/8
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Power
Max power :- 750 W
Size & Weight
Length (L) :- 210 mm
Weight :- 1.5 kg

Benefits

  • Machined steel housing designed for tough usage
  • Super durable bevel gear for a robust construction
  • Ultra compact for a great maneuverability in both version standard and extended shaft.
  • Up to 0.7 hp (520 W) industrial grade motor and 13,000 rotations per minute for a perfect material removal result
