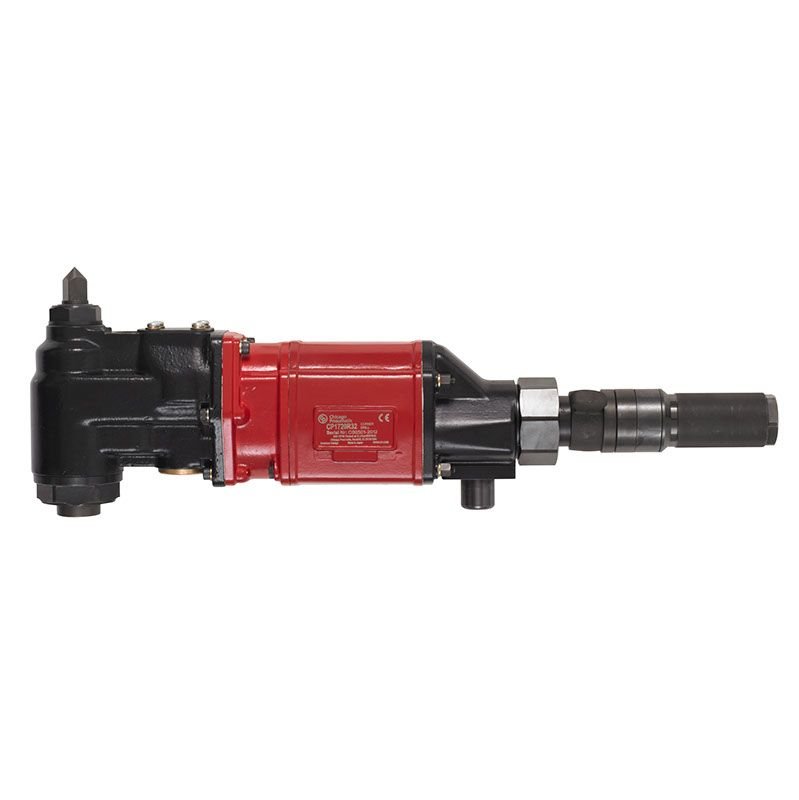

CP1720R50 2"(50 mm) CORNER PNEUMATIC DRILL - Image 2

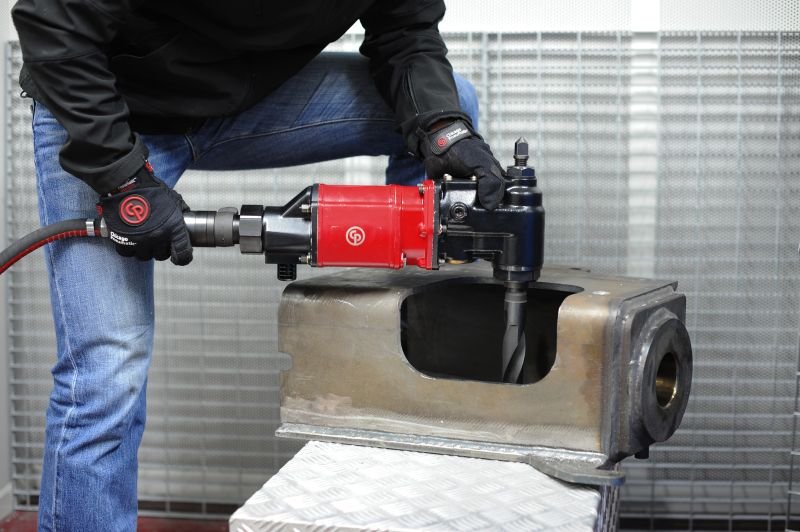

CP1720R50 2"(50 mm) CORNER PNEUMATIC DRILL - Image 3

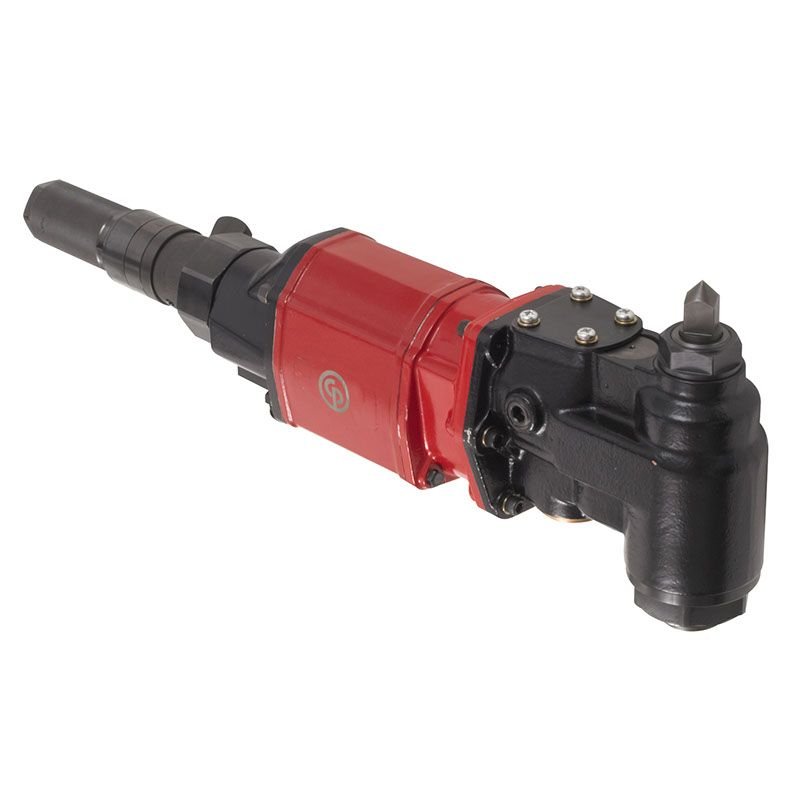

CP1720R50 2"(50 mm) CORNER PNEUMATIC DRILL - Image 4
,

CP1720R50 2″(50 mm) CORNER PNEUMATIC DRILL



Take advantages of this CP1720R range of durable and precise reversible corner drills. The CP1720R range is defined by 3 models with 1.2 Hp (890 W) to 2.2 Hp (1630 W) pneumatic motor from 140 to 430 RPM and from 80.4 Nm (59.3 ft.lb) to 392.0 Nm (289.3 ft.lb) stall torque. Morse tapper socket are form N° 2 to N° 4. CP1720R reversible corner drills cover a large variety of applications like drilling, reaming & tapping of mild steel, cast iron.Country of origin is JP. Customs tariff is 84671190

Categories: , Brand:

Technical Specifications

Design & Functions
Chuck max capacity (in) :- 2
Chuck max capacity (mm) :- 50
Chuck type :- Morse taper 4
Handle type :- Corner
Main Material type :- Aluminum
Reversible :- Yes
Starting system :- Self return rolling throttle
Noise & vibrations
Sound Power :- 118 dB(A)
Sound Pressure :- 107 dB(A)
Uncertainty vibration-K :- 0.6 m/s²
Air information
Air consumption at load :- 38 l/s
Air inlet thread size (in) :- 1/2
Air inlet thread type :- NPT
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.75 in
Min hose diam (5 m hose length) :- 19 mm
Power & Battery
Max power :- 1630 W
Torque
Stall torque :- 392 Nm
Speed
Free Speed :- 140 rpm
Air consumption at free speed :- 0 l/s
Size & Weight
Length (L) :- 595 mm
Weight :- 16 kg

Benefits

  • Highest power with a durable and powerfull Air motor.
  • Fast with high free speed
  • High capacity reversible corner drill
  • Excellent durable gearbox ensures the strong drilling
