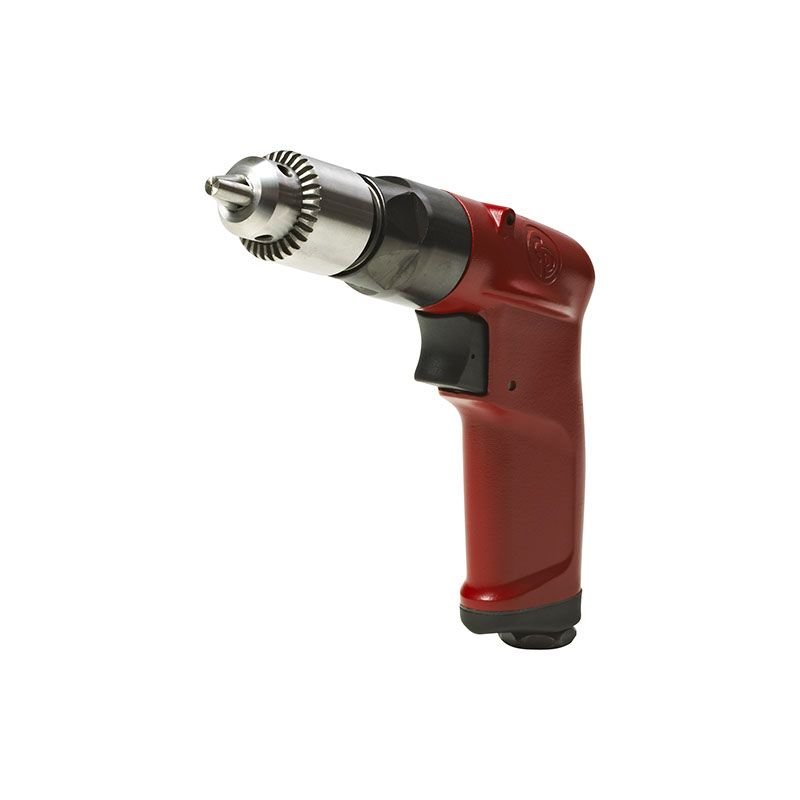

CP1014P33 1/4"(6 mm) PISTOL PNEUMATIC DRILL - Image 2

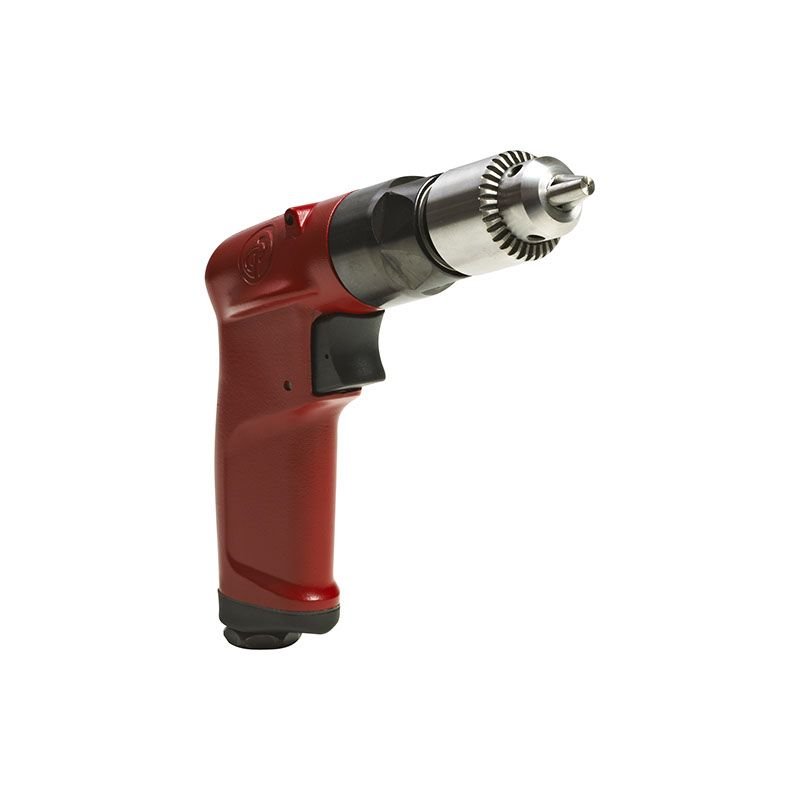

CP1014P33 1/4"(6 mm) PISTOL PNEUMATIC DRILL - Image 3

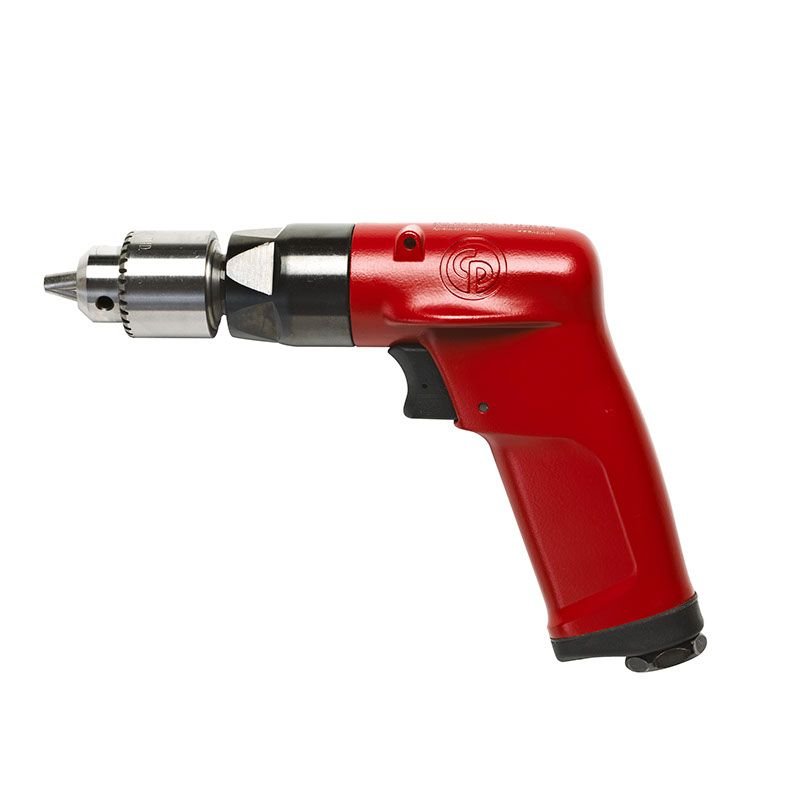

CP1014P33 1/4"(6 mm) PISTOL PNEUMATIC DRILL - Image 4
,

CP1014P33 1/4″(6 mm) PISTOL PNEUMATIC DRILL



Take advantages of this CP1014 range of compact, high speed, durable and precise drills. The CP1014 range is defined by 4 models with 0.5 Hp (375 W) pneumatic motor from 500 to 4500 RPM and from 3,2 Nm (2,4 ft.lb) to 24.5 Nm (18,2 ftlb) stall torque.Country of origin is TW. Customs tariff is 84671190

Categories: , Brand:

Technical Specifications

Design & Functions
Chuck max capacity (in) :- 1/4
Chuck max capacity (mm) :- 6.4
Chuck type :- Keyed
Handle type :- Pistol
Main Material type :- Aluminum
Reversible :- No
Starting system :- Trigger
Trigger type :- Progressive
Noise & vibrations
Sound Power :- 89 dB(A)
Sound Pressure :- 78 dB(A)
Air information
Air consumption at load :- 9 l/s
Air inlet thread size (in) :- 1/4
Max dynamic air working pressure :- 6.3 bar
Min hose diam (16 ft hose length) :- 0.38 in
Min hose diam (5 m hose length) :- 10 mm
Power & Battery
Max power :- 375 W
Torque
Stall torque :- 3.5 Nm
Speed
Free Speed :- 3300 rpm
Air consumption at free speed :- 10 l/s
Size & Weight
Length (L) :- 160 mm
Weight :- 0.54 kg

Benefits

  • High power 0.5hp (375W) with excellent control by teasing throttle handle
  • high Ergonomic with compact CP Ergo Wings body, Low Noise and Low vibrations
  • High quality 1/4″ (6 mm) industrial pistol drill with Jacobs industrial keyed chuck
