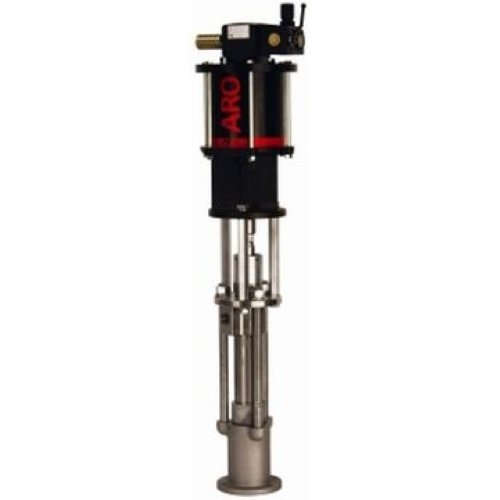

AF0828S Series Chop Check Piston Pump

Description

• Ratio :
  28:1
• Stroke :
  6” (15.24 cm)
• Material Inlet :
  Flange Mount
• Material Outlet :
  1-1/4” NPT(F)
• Air Inlet (female) :
  1/2” NPT(F)
• Air Inlet Pressure Range psi (bar) :
  30 – 120 (2.1 – 8.3)
• Fluid Pressure Range psi (bar) :
  840 – 3360 (57.9 – 231.7)
• Max Cycles/Minute :
  70
• Displacement/Cycle cu in (cm3) :
  20.0 (327.8)
• Cycles/gal (L) :
  11.55 (3.0)
• Flow @ 70 Cycles gpm (L/min) :
  6.0 (22.7)
• Noise Level @ 60 psi dBA :
  86.8
• Weight* lb (kg) :
  140 (63.5)
• Container Suitability :
  Remote Mounting

• A 1 in (mm) :
  53.46 (1357.88)
• B in (mm) :
  30.41 (772.29)
• C in (mm) :
  19.25 (488.95)
