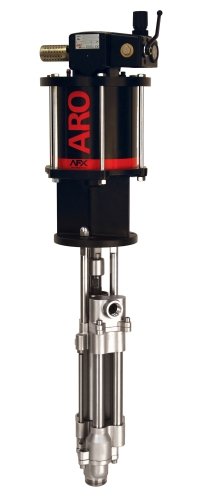

AF0807 Series 4-Ball Piston Pumps

Description

• Ratio :
  7:1
• Stroke :
  6” (15.24 cm)
• Material Inlet :
  1-1/2” NPT(F)2” NPT(M)
• Material Outlet :
  1” NPT(F)
• Air Inlet (female) :
  1/2” NPT(F)
• Air Inlet Pressure Range psi (bar) :
  30 – 120 (2.1 – 8.3)
• Fluid Pressure Range psi (bar) :
  210 – 1009 (14.5 – 69.6)
• Max Cycles/Minute :
  70
• Displacement/Cycle cu in (cm3) :
  77.5 (1269.9)
• Cycles/gal (L) :
  2.9 (0.7)
• Flow @ 60 Cycles gpm (L/min) :
  23.5 (88.8)
• Noise Level @ 60 psi dBA :
  86.8
• Weight* lb (kg) :
  96 (43.5)
• Container Suitability :
  Remote Mounting

Dimensions

• A 1 in (mm) :
  48.73 (1237.72)
• B in (mm) :
  25.67 (652.12)
• C in (mm) :
  19.54 (496.32)
