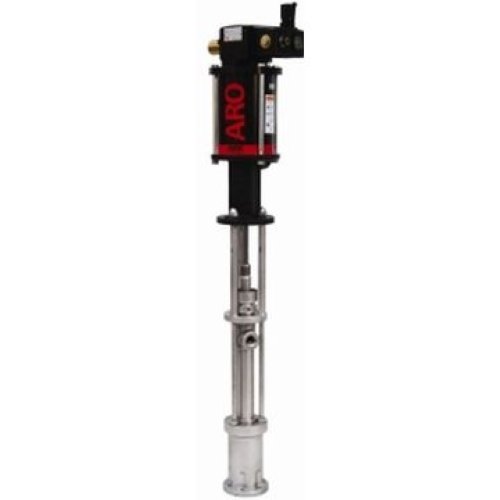

AF0646 Series Chop Check Piston Pumps

Description

• Ratio :
  46:1
• Stroke :
  6” (15.24 cm)
• Material Inlet :
  Hard / Soft: 0 – 3,900 / 0 – 1,600
• Material Outlet :
  1” NPT(F)
• Air Inlet (female) :
  1/2” NPT(F)
• Air Inlet Pressure Range psi (bar) :
  0 – 150 (0 – 10.3)
• Fluid Pressure Range psi (bar) :
  0 – 7485 (0 – 516.2)
• Max Cycles/Minute :
  60
• Displacement/Cycle cu in (cm3) :
  6.97 (113)
• Cycles/gal (L) :
  33.1 (8.8)
• Flow @ 60 Cycles gpm (l/min) :
  1.8 (6.9)
• Noise Level @ 60 psi dBA :
  84.7
• Weight* lb (kg) :
  67 (30.4)
• Container Suitability :
  Remote Mounting

Dimensions

• A* in (mm) :
  42.18 (1071.47)
• B in (mm) :
  18.91 (480.34)
• C in (mm) :
  12.66 (321.59)
