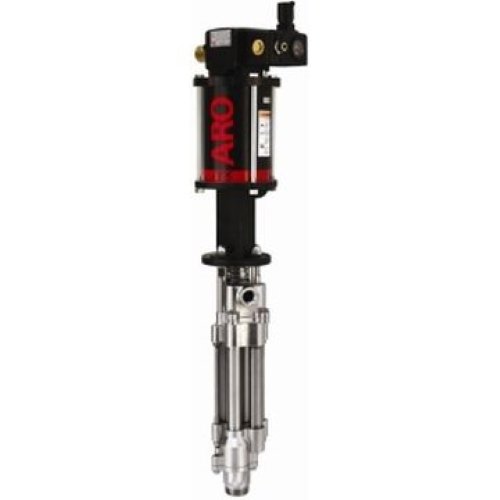

AF0604 Series 4-Ball Piston Pumps

Description

• Ratio :
  4:1
• Stroke :
  6” (15.24 cm)
• Material Inlet:
  1-1/2” NPT(F)2” NPT(M)
• Material Outlet :
  1” NPT(F)
• Air Inlet (female) :
  1/2” NPT(F)
• Air Inlet Pressure Range psi (bar) :
  30 – 150 (2.1 – 10.3)
• Fluid Pressure Range psi (bar) :
  120 – 633 (8.3 – 43.7)
• Max Cycles/Minute :
  60
• Displacement/Cycle cu in (cm3) :
  82.1 (1345.3)
• Cycles/gal (L) :
  2.8 (0.74)
• Flow @ 60 Cycles gpm (L/min) :
  21.3 (80.6)
• Noise Level @ 60 psi dBA :
  84.7
• Weight* lb (kg) :
  71.25 (32.3)
• Container Suitability :
  Remote Mounting
