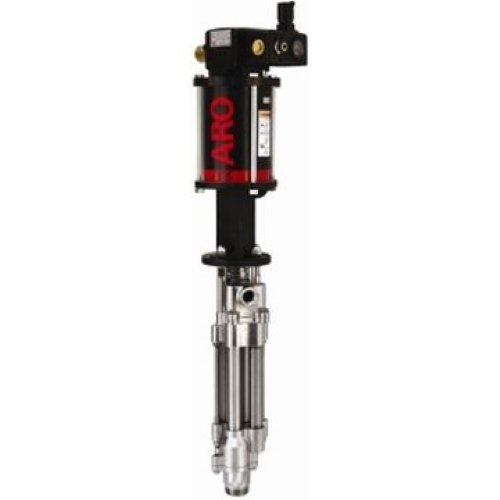

AF0603 Series 4-Ball Piston Pumps

Description

• Ratio :
  3:1
• Stroke :
  6” (15.24 cm)
• Material Inlet :
  1-1/2” NPT(F)2” NPT(M)
• Material Outlet :
  1” NPT(F)
• Air Inlet (female) :
  1/2” NPT(F)
• Air Inlet Pressure Range psi (bar) :
  30 – 150 (2.1 – 10.3)
• Fluid Pressure Range psi (bar) :
  90 – 457 (6.2 – 31.5)
• Max Cycles/Minute :
  60
• Displacement/Cycle cu in (cm3) :
  112.7 (1846.8)
• Cycles/gal (L) :
  2.05 (0.54)
• Flow @ 60 Cycles gpm (L/min) :
  29.3 (110.8)
• Noise Level @ 60 psi dBA :
  84.7
• Weight* lb (kg) :
  73.25 (33.2)
• Container Suitability :
  Remote Mounting

• A* in (mm) :
  45.27 (1149.76)
• B in (mm) :
  21.99 (558.62)
• C in (mm) :
  19.54 (496.32)
