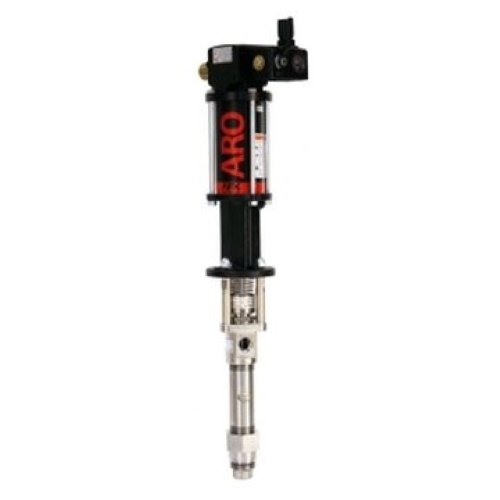

AF0422 2-Ball Piston Pump & Packages

Description

• Ratio :
  11:1
• Stroke :
  6” (15.24 cm)
• Material Inlet :
  1” NPT(F)2” NPT(M)
• Material Outlet :
  1” NPT(F)
• Air Inlet (female) :
  1/2” NPT(F)
• Air Inlet Pressure Range psi (bar) :
  30 – 150 (2 – 10.3)
• Fluid Pressure Range psi (bar) :
  660 – 3412 (46 – 235)
• Max Cycles/Minute :
  7.5 (122.9)
• Displacement/Cycle cu in (cm3) :
  60.0
• Cycles/gal (L) :
  30.9 (8.1)
• Flow @ 60 Cycles gpm (L/min) :
  1.9 (7.2)
• Noise Level @ 60 psi dBA :
  86.5
• Weight* lb (kg) :
  42.9 (19.5)
• Container Suitability :
  Remote Mounting

Dimensions

• A* in (mm) :
  42.18 (1071.47)
• B in (mm) :
  18.91 (480.34)
• C in (mm) :
  12.66 (321.59)
