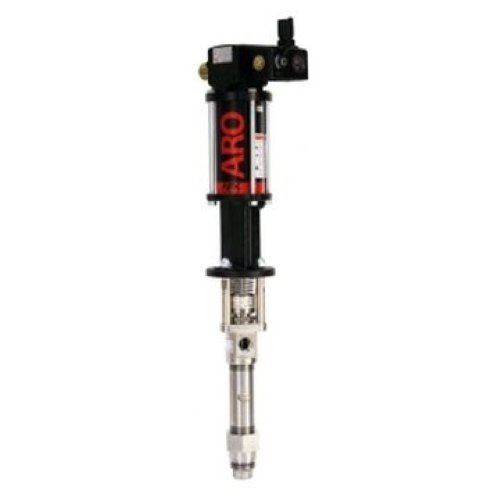

AF0411 Series 2-Ball Piston Pumps

Description

• Ratio :
  11:1
• Stroke :
  6” (15.24 cm)
• Material Inlet :
  1” NPT(F) 2” NPT(M)
• Material Outlet :
  1” NPT(F)
• Air Inlet (female) :
  1/2” NPT(F)
• Air Inlet Pressure Range psi (bar) :
  30 – 150 (2 – 10.3)
• Fluid Pressure Range psi (bar) :
  330 – 1747 (23 – 120)
• Max Cycles/Minute :
  60.0
• Displacement/Cycle cu in (cm3) :
  14.5 (237.6)
• Cycles/gal (L) :
  15.9 (4.2)
• Flow @ 60 Cycles gpm (L/min) :
  3.7 (14.0)
• Noise Level @ 60 psi dBA :
  86.5
• Weight* lb (kg) :
  42.9 (19.5)
• Container Suitability :
  Remote Mounting

Dimensions

• A* in (mm) :
  42.18 (1071.47)
• B in (mm) :
  18.91 (480.34)
• C in (mm) :
  12.66 (321.59)
