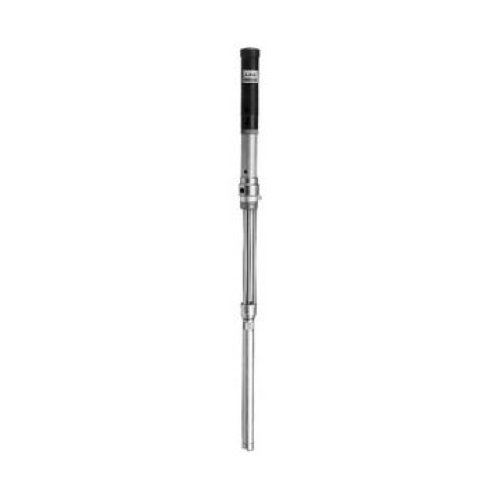

650110-C 2-Ball Piston Pump & Packages

Description

• Ratio :
  2:1
• Stroke :
  6”
• Material Inlet :
  Immersed
• Material Outlet :
  650110-C 1/2” NPT(F)650110-1C 1/4” NPT(F)
• Air Inlet (female) :
  1/4” NPT(F)
• Air Inlet Pressure Range psi (bar) :
  0 – 150 (0 – 10.3)
• Fluid Pressure Range psi (bar) :
  0 – 300 (0 – 20.7)
• Max Cycles/Minute :
  120.0
• Displacement/Cycle cu in (cm3) :
  8.0 (131.0)
• Cycles/gal (L) :
  28.9 (7.6)
• Flow @ 60 Cycles gpm (L/min) :
  2.0 (7.5)
• Noise Level @ 60 psi dBA :
  81.0
• Weight* lb (kg) :
  12 (5.4)
