Description
Model Specification:- Model no:-1 Model no:-2

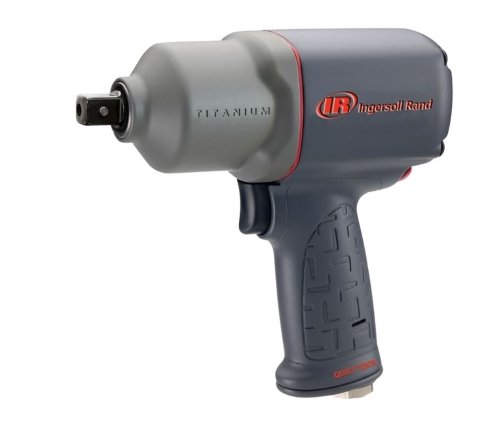

Model:- 2135PTiMAX 2135QPTiMAX
Configuration:- Pistol Pistol
Actuation:- Trigger Trigger
Drive Size:- 1/2 in. 1/2 in.
Drive Type:- Square, Pin Square, Pin
Nut-Busting Torque (ft-lbs):- 1100 100
Nut-Busting Torque (Nm):- 1490 1490
Forward Torque (ft-lbs):- 550 550
Forward Torque (Nm):- 746 746
Max Reverse Torque (ft-lbs):- 780 780
Max Reverse Torque (Nm):- 1057 1057
Blows per minute:- 1250 1250
Free Speed (RPM):- 11000 11000
Impacting Sound Level dB(A)
— ISO15744 (pressure/power):- 99.8 / 110.8 94.2 / 105.2
Free Speed Sound Level dB(A)
— CAGI/ANSI S12.41 (pressure/power):- 109.2 / 120.2 86.0 / 97.0
Vibration Level m/s2 (K):- 13.3 (4.6) 13.3 (4.6)
Weight (lbs):- 3.95 3.95
Weight (kg):- 1.79 1.79
Width (in):- 2.7 2.7
Width (mm):- 70 70
Height (in):- 7.2 7.2
Height (mm):- 183 183
Length (in):- 7.5 7.5
Length (mm):- 190 190
Air Inlet:- 1/4 in. 1/4 in.
Min Hose Size (in):- 3/8 3/8
Min Hose Size (mm):- 10 10
Air Consumption @ Load (cfm):- N/A N/A
Air Consumption @ Load (L/min):- N/A N/A
Average Air Consumption (cfm):- 5 5
Average Air Consumption (L/min):- 142 142
PSI:- 90 90
Bar:- 6.2 6.2
