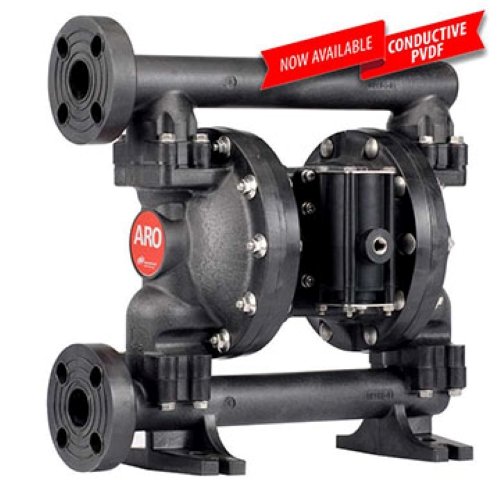

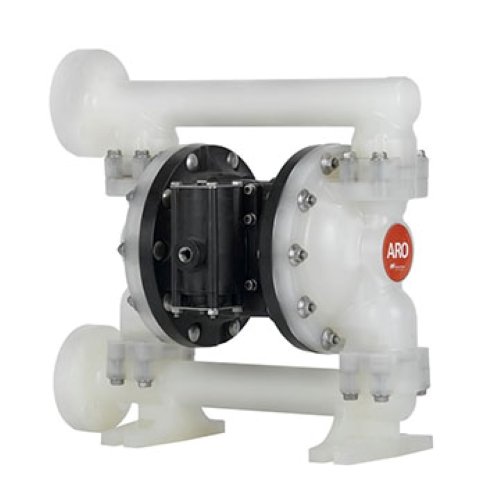

1” EXP Non-Metallic Air Operated Diaphragm Pump

Description

• Ratio :
  1:1
• Maximum GPM (LPM) :
  53 (200)
• Displacement per cycle Gallons (Liters) :
  0.226 (0.86)
• Air Inlet (Female) :
  1/4 – 18 N.P.T.
• Fluid Inlet/Outlet :
  1 – 11-1/2 N.P.T.F., Rp1(1-11 BSP)
  1” A.N.S.I./DIN flange (side or center)
• Max. operating pressure psi (bar) :
  120 (8.3)
• Suspended solids max. dia. in.(mm) :
  1/8” (3.2)
• Weight lbs (kg) :
  Polypropylene, Threaded Port 19.35 (8.78)
  Polypropylene, Center Ported 19.59 (8.89)
  Polypropylene, Side Ported 19.87 (9.01)
  PVDF, Threaded Port 25.83 (11.72)
  PVDF, Center Ported 26.72 (12.12)
  PVDF, Side Ported 27.15 (12.32)
• Maximum dry suction lift ft(m) :
  19 (5.7)
• Sound Level :
  70 PSI    60 Cycles/Min    79.7 db(A)
• Muffler Included :
  93110
